QUICK OVERVIEW

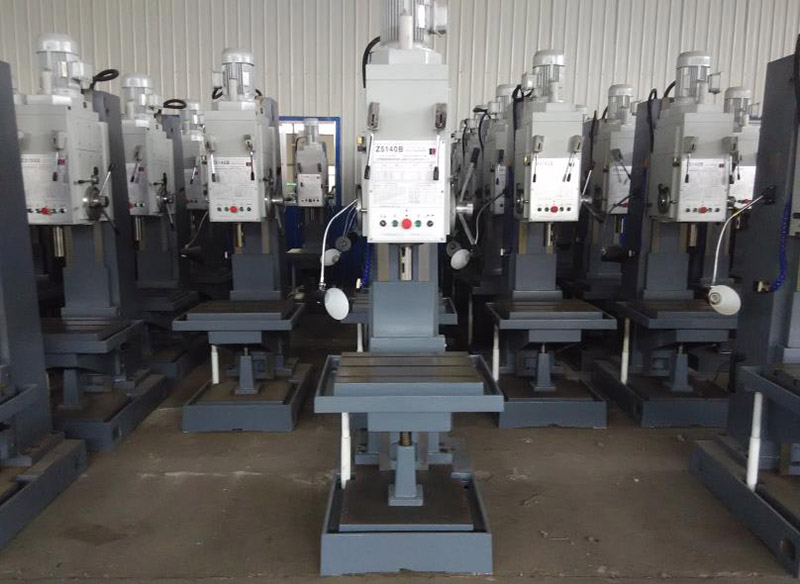

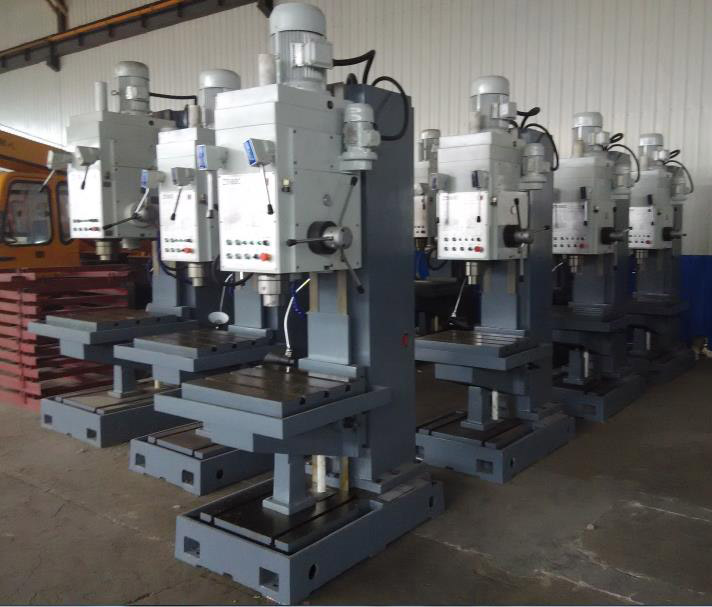

The Z5150 is suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.
Contact us
SPECIFICATIONS
|
Drilling capacity in steel |
50 mm |
|
Thread cutting max. |
M42 |
|
Torque |
350 Nm |
|
Travel of drill head |
195 mm |
|
Morse taper |
MT 5 |
|
Spindle speed / steps |
45 - 850 rpm, 9 steps |
|
Feed range |
(9) 0,056 - 1,8 mm/rev. |
|
Feeding force |
16000 N |
|
Distance spindle to column |
335 mm |
|
Distance spindle to table max. |
720 mm |
|
Spindle stroke |
250 mm |
|
Table size / T-slot size |
560 x 480 mm / 18 mm |
|
Table lift |
315 mm |
|
Motor power |
4,0 kW |
|
Machine dimension (W x D x H) |
750 x 1150 x 2520 mm |
|
Weight approx. |
1250 kg |
FEATURES
- Solid construction of column and base designed for excessive use
- Powerful drive motor features high torque and large feed force
- Solid grey cast iron construction maximizes table load capacity
- Tapping device comes with automatic change of rotation at adjusted drill depth
- Convenient control lever allows for quick and easy feed and speed adjustment
- Polished gear wheel, in oil bath, ensure smooth operartion
- Automatic spindle feed, tapping device and work lamp included in standard equipment
- Wide, heavy-duty dovetail guidings feature adjustable gibs
Standard accessories:
- Coolant device
- Thread cutting device
- Left and right turning
- LED working light
- Morse taper drill sleeve
- Tools
- Height adjustable protective cover
Optional accessories:
- Morse taper drill chuck arbor MT 5 - B 18
- Keyless drill chuck with direct mount MT 5, 1 - 25 mm
- Keyless drill chuck 1 - 16 mm / B 18
- Keyless drill chuck with direct mount MT 5, 3 - 16 mm
- Two-parts milling vise 160
- Two-parts milling vise 200
- Drilling machine vise 150
- Drilling machine vise 200
- Machine mount 80
- Machine mount 120
