QUICK OVERVIEW

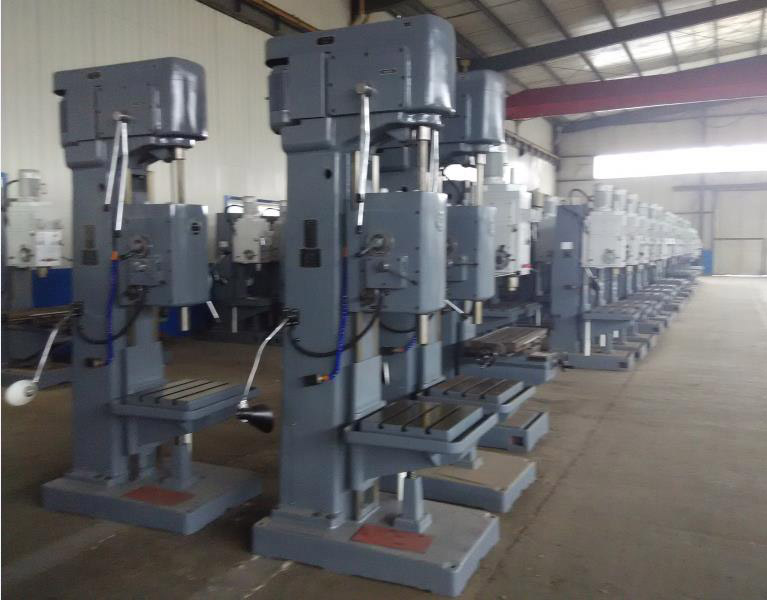

The Z5125 is suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.
Contact us
SPECIFICATIONS
|
Drilling capacity in steel |
25 mm |
|
Thread cutting max. |
M16 |
|
Torque |
160 Nm |
|
Travel of drill head |
200 mm |
|
Morse taper |
MT 3 |
|
Spindle speed / steps |
50 - 2000 rpm, 9 steps |
|
Feed range |
(9) 0,056 - 1,80 mm/rev. |
|
Feeding force |
9000 N |
|
Distance spindle to column |
280 mm |
|
Distance spindle to table max. |
710 mm |
|
Spindle stroke |
200 mm |
|
Table size / T-slot size |
550 x 400 mm / 14 mm |
|
Table lift |
300 mm |
|
Motor power |
2,2 kW |
|
Machine dimension (W x D x H) |
700 x 960 x 2340 mm |
|
Weight approx. |
950 kg |
FEATURES
- Solid construction of column and base designed for excessive use
- Powerful drive motor features high torque and large feed force
- Solid grey cast iron construction maximizes table load capacity
- Tapping device comes with automatic change of rotation at adjusted drill depth
- Convenient control lever allows for quick and easy feed and speed adjustment
- Polished gear wheel, in oil bath, ensure smooth operation
- Automatic spindle feed, tapping device and work lamp included in standard equipment
- Wide, heavy-duty dovetail guiding feature adjustable gib
Standard accessories:
- Coolant device
- Thread cutting device
- Left and right turning
- LED working light
- Morse taper drill sleeve
- Tools
- Height adjustable protective cover
Optional accessories:
- Morse taper drill chuck arbor MT 3 - B 18
- Keyless drill chuck with direct mount MT 3, 1 - 16 mm
- Keyless drill chuck 1 - 16 mm / B 18
- Deluxe clamping kit set 52 pcs., 14 mm, M 12
- Two-parts milling vise 160
- Drilling machine vise 150
- Drilling machine vise 200
- Machine mount 80
