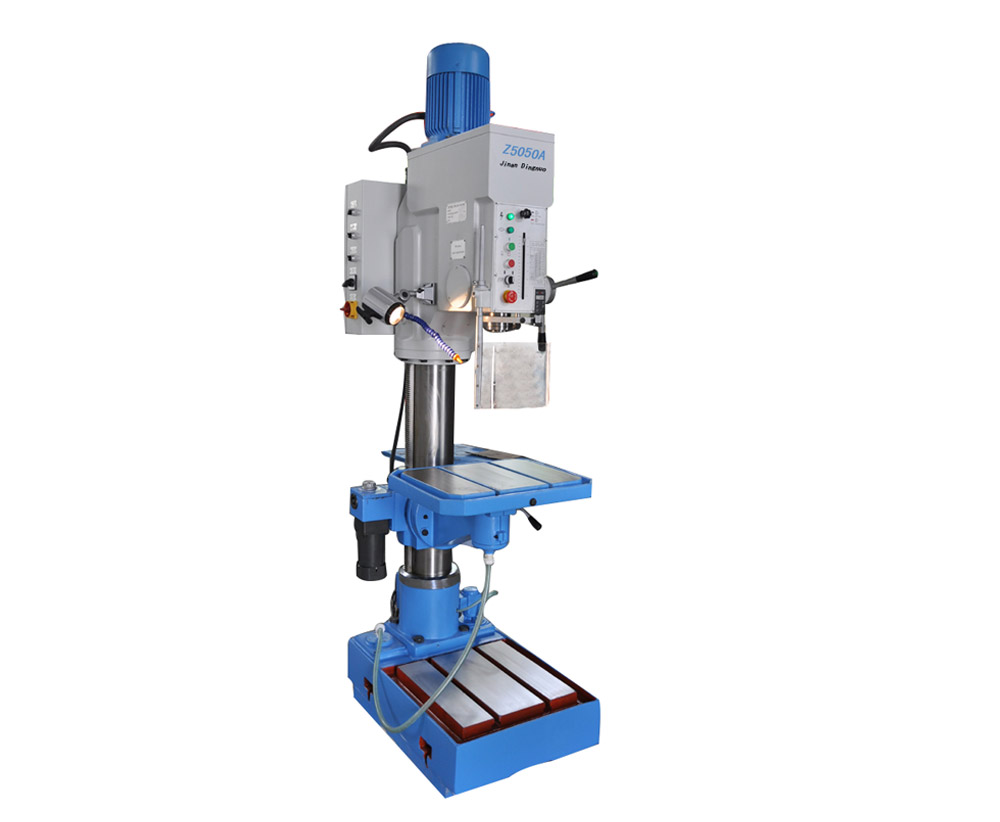

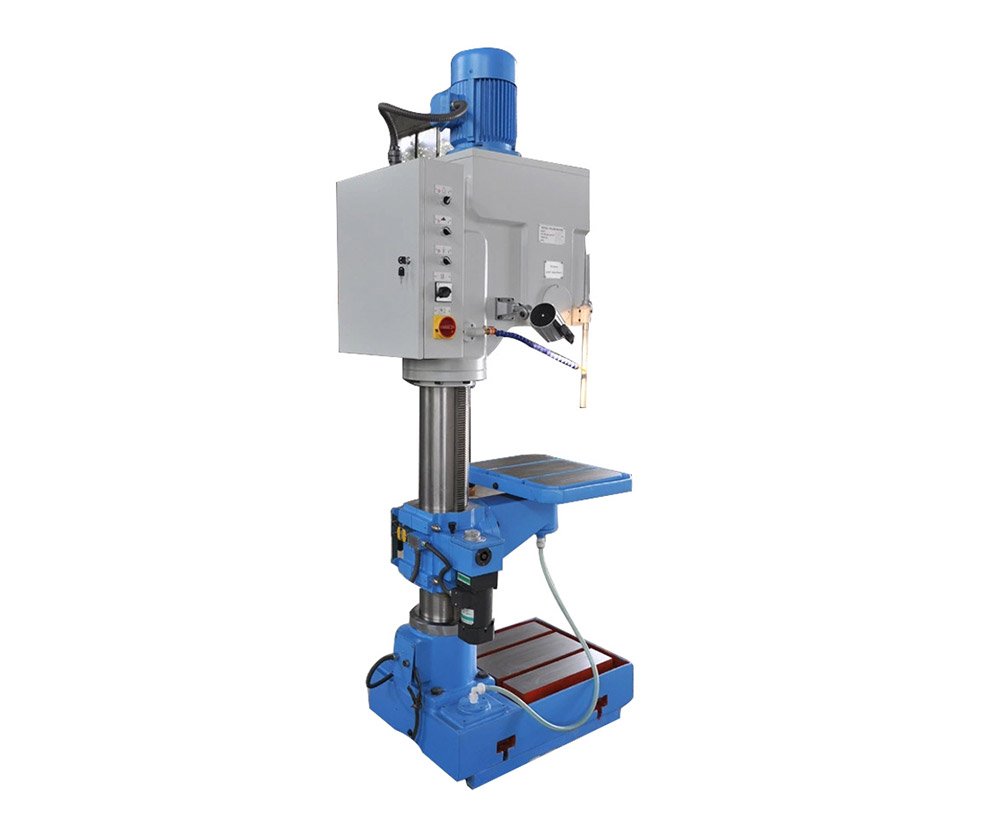

Z5050A
Order No.:
Stock: 5
Delivery Time: 30
Without Tax: $
Machine video: 2999-3500
QUICK OVERVIEW
Contact us
Order No.:
Stock: 5
Delivery Time: 30
Without Tax: $
Machine video: 2999-3500
QUICK OVERVIEW
Contact us
| Model | Z5030A | Z5035A | Z5040A | Z5050A | |
| Max. Drilling dia.(steel) and tapping dia.(mm) | φ30/M18 | Φ35/M20 | Φ40/M24 | Φ50/M24 | |
| Max.Travel of spindle(mm) | 135 | 150 | 180 | 180 | |
| Max.Distance from spindle to generating line of column(mm) | 315 | 330 | 360 | 360 | |
| Max.Distance from spindle nose to surface of worktable.(mm) | 520 | 610 | 600 | 600 | |
| Max.Distance from spindle nose to surface of base worktable(mm) | 1080 | 1150 | 1215 | 1205 | |
| Max Travel of worktable and bracket(mm) | 480 | 540 | 560 | 525(410) | |
| Swivel angle of worktable | ±45° | ±45° | ±45° | ±45° | |
| Spindle taper bore（MT） | MT3 | MT4 | MT4 | MT4 | |
| Spindle speed steps | 12 | 12 | 12 | 12 | |
| Spindle speed range(r/min) | 70~2600 | 70-2600 | 42-2050 | 42-1865 | |
| Spindle feed steps | 3 | 3 | 4 | 4 | |
| Spindle feed range(mm/r) | 0.1;0.2;0.3 | 0.1;0.2;0.3 | 0.07;0.15;0.26;0.4 | 0.07;0.15;0.26;0.4 | |
| Dimension of worktable(mm) | 450×450 | 500×550 | 580×450 | 580×450 | |
| Effective working area of worktable(mm) | 690×480 | 760×500 | 820×550 | 820×550 | |
| Effective of T-slot of table and base piate(mm) | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | |
| Diameter of column(mm) | φ125 | Φ140 | φ160 | φ170 | |
| 3-phase two speed Ac montor | Power(Kw) | 1.0/1.5 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 |
| Voltage(V) | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | |
| Speed(r/min) | 960/1450 | 960/1450 | 960/1450 | 960/1450 | |
| 3-phase pummotor | Power(Kw) | 0.09 | 0.09 | 0.09 | 0.09 |
| Voltage(V) | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | 220.380.420.440 | |
| Flow rate(L/min) | 6 | 6 | 6 | 6 | |
| Machine dimension(mm) | 650×1050×1950 | 700×1150×2150 | 700×2150×2150 | 700×1150×2150 | |
| Net weight and gross weight(Kg) | 440/500 | 670/730 | 740/800 | 800/860 | |
| Sets/20' Container | 24 | 20 | 16 | 16 | |
