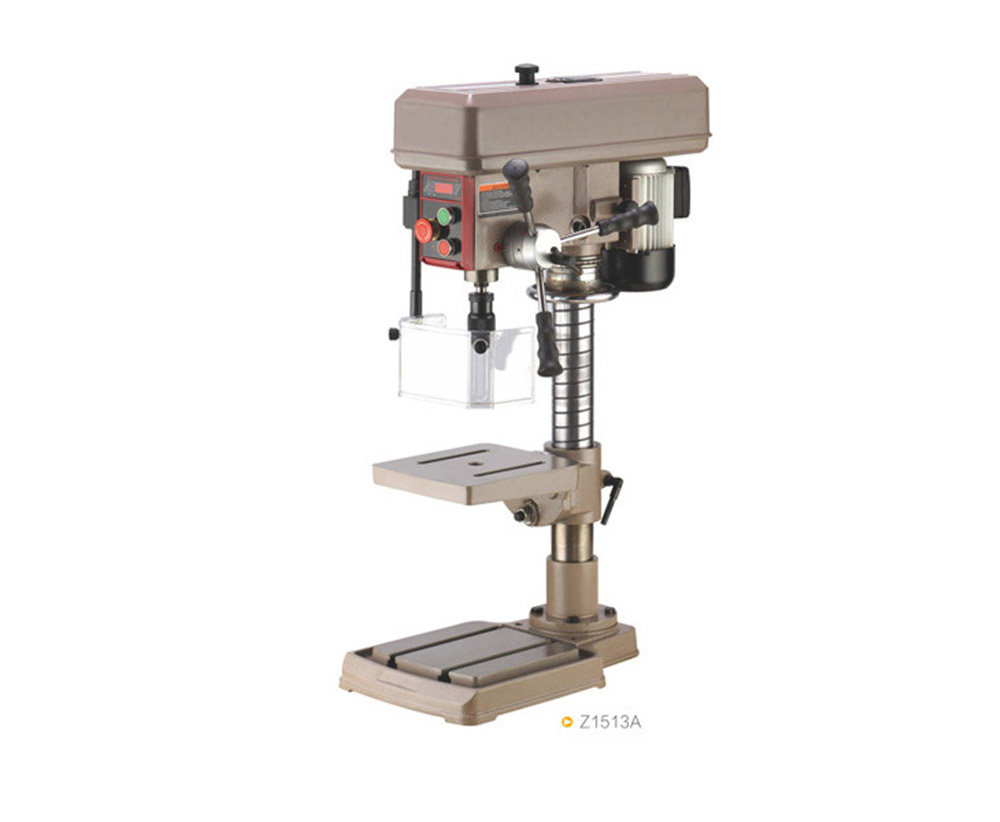

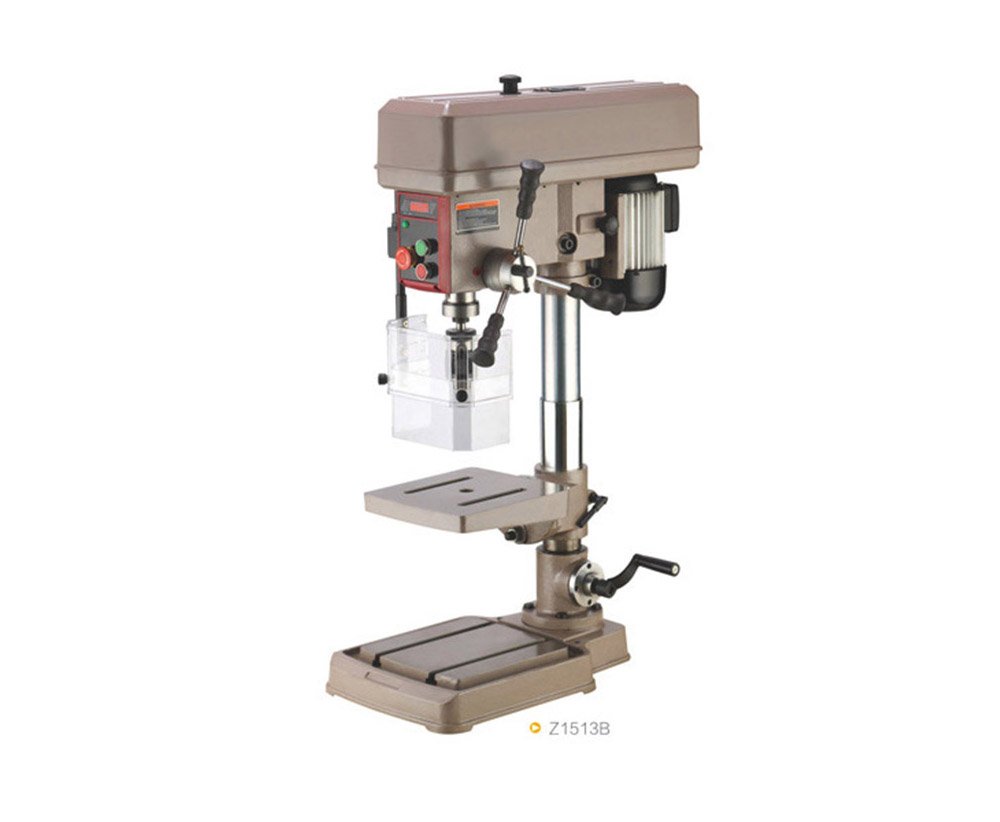

Z1513A / Z1513B
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 400-800
QUICK OVERVIEW
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 400-800
QUICK OVERVIEW
Contact us
| Model | Unit | Z1513A | Z1513B |
| Feature | Drilling | Drilling | |
| Drill/Tapping Capacity | mm | 13 | 13 |
| Chuck Capacity | mm | 1-13 | 1-13 |
| Column Diameter | mm | 70 | 70 |
| Spindle Taper | mm | 80 | 80 |
| Swing | mm | 360 | 360 |
| Max.Distance spindle to table | mm | 340 | 340 |
| Max.Distance spindle to base | mm | 570 | 570 |
| Spindle Taper | B16 | B16 | |
| Speed Range | rpm | 360-2700 | 360-2700 |
| No.of Speed | step | 5 | 5 |
| Table Size | mm | 267*230 | 267*230 |
| Base Size | mm | 490*318 | 490*318 |
| Overall Height | mm | 1000 | 1000 |
| Motor | w | 400V/550W/50Hz | 400V/550W/50Hz |
| Weight | 85 | 85 | 85 |
| Packing Size | mm | 680*380*930 | 680*380*930 |
