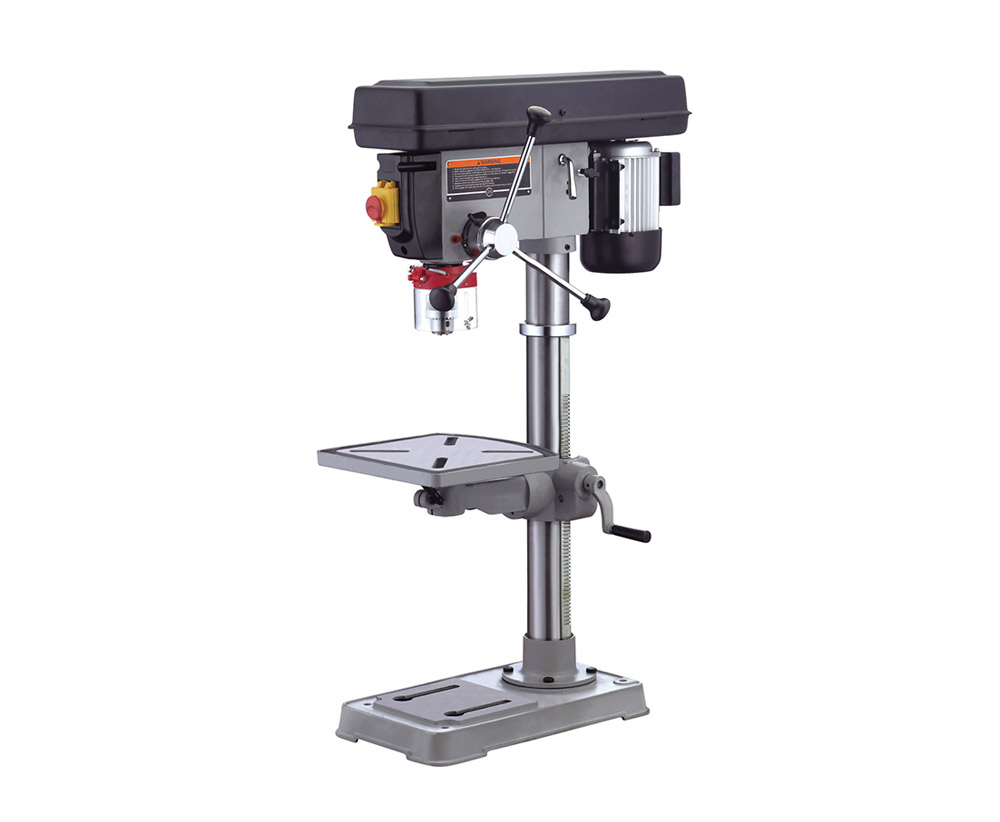

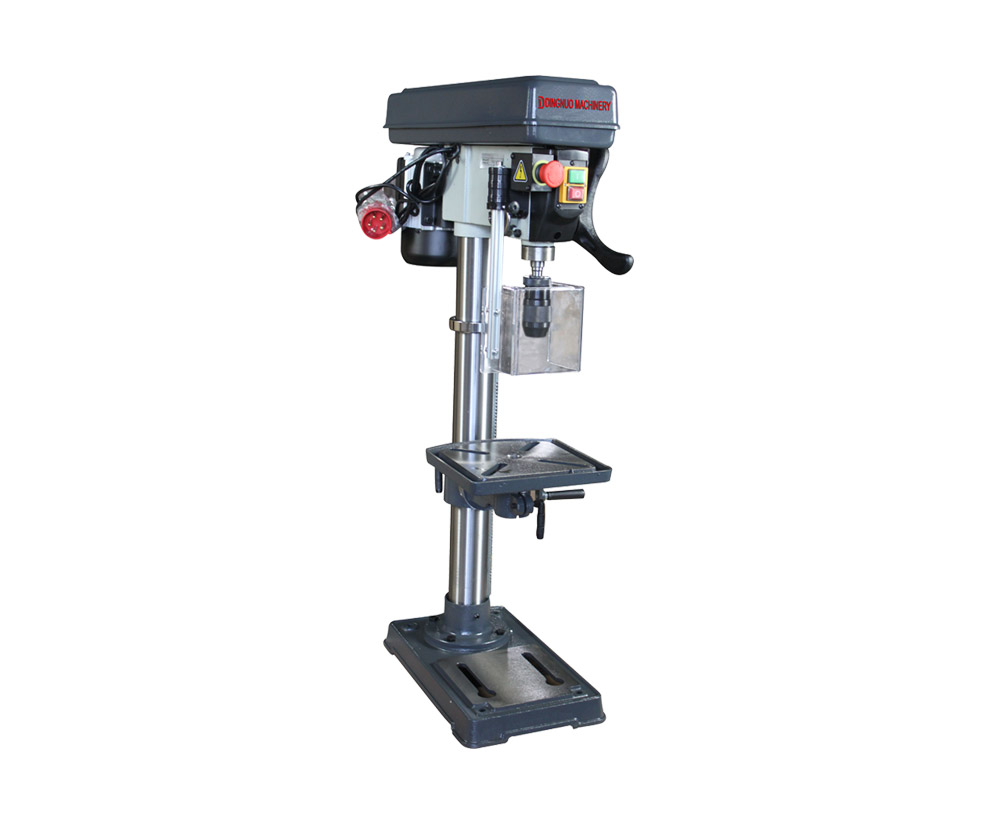

DP38016B / DP38016F
Order No.:
Stock: 20
Delivery Time: 30
Without Tax: $
Machine video: 230-260
QUICK OVERVIEW
Contact us
Order No.:
Stock: 20
Delivery Time: 30
Without Tax: $
Machine video: 230-260
QUICK OVERVIEW
Contact us
| Model | DP38016B | DP38016F |
| Drill Capacity | 20mm | 20mm |
| Chuck Capacity | 16mm | 16mm |
| Swing | 15″(380mm) | 15″(380mm) |
| Spindle Taper | MT2 | MT2 |
| Speed Range(50HZ) | 12(180-2740) | 12(180-2740) |
| Speed Range(60HZ) | 12(250-3100) | 12(250-3100) |
| Spindle Travel | 80mm | 80mm |
| Column Diameter | 73mm | 73mm |
| Rack & Pinion | YES | YES |
| Base Size | 480*290mm | 480*290mm |
| Table Size | 305*305mm | 305*305mm |
| Motor | 600W | 600W |
| Overall Height | 1050mm | 1635mm |
| N.W./G.W | 58/63kgs | 64/69kgs |
| Packing Size | 895*490*290mm | 1430*510*256mm |
| Units Per 20′Container | 224pcs | 160pcs |
