ETB-40
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

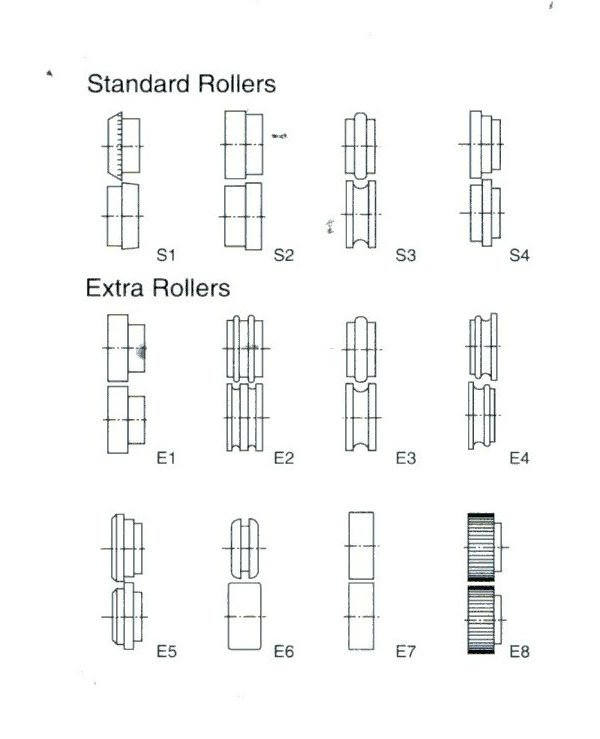

1. Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes. 2. The rigidity of the plates, pipes or metal components is strengthened. 3. Steel welded construction frame 4. Adjustable idle roller 5. Steel shaft with bronze bushings 6. Reduction motor with brake system 7. Movement of rollers with foot pedal 8. Complete with stand 9. 4 sets standard rollers
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
1. Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes. 2. The rigidity of the plates, pipes or metal components is strengthened. 3. Steel welded construction frame 4. Adjustable idle roller 5. Steel shaft with bronze bushings 6. Reduction motor with brake system 7. Movement of rollers with foot pedal 8. Complete with stand 9. 4 sets standard rollers
Contact us
| TECHNICAL SPECIFICATIONS |
| MODEL | ETB-25 | ETB-40 |
| THICKNESS MAX | 2.5MM/12GA | 4MM/8GA |
| CYLINDER LENGTH | 120MM/ 4-3/4” | 165MM / 6-1/2” |
| THROAT DEPTH | 280MM / 11” | 300MM / 12” |
| CYLINDER SPEED | 20RPM | 15.3RPM |
| MOTOR POWER | 1.5KW / 2HP | 2.2KW / 3HP |
| NET WEIGHT | 235KG/518LB | 341KG/752LB |
| PACKING SIZE (CM) | 147X58X135 | 165X58X140 |
