BEAD BEADING MACHINE

Home > Products > SHEET > BEAD BEADING MACHINE
ETB-25

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW

1. Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes. 2. The rigidity of the plates, pipes or metal components is strengthened. 3. Steel welded construction frame 4. Adjustable idle roller 5. Steel shaft with bronze bushings 6. Reduction motor with brake system 7. Movement of rollers with foot pedal 8. Complete with stand 9. 4 sets standard rollers

Contact us

TECHNICAL SPECIFICATIONS
MODEL ETB-25 ETB-40
THICKNESS MAX 2.5MM/12GA 4MM/8GA
CYLINDER LENGTH 120MM/ 4-3/4” 165MM / 6-1/2”
THROAT DEPTH 280MM / 11” 300MM / 12”
CYLINDER SPEED 20RPM 15.3RPM
MOTOR POWER 1.5KW / 2HP 2.2KW / 3HP
NET WEIGHT 235KG/518LB 341KG/752LB
PACKING SIZE (CM) 147X58X135 165X58X140

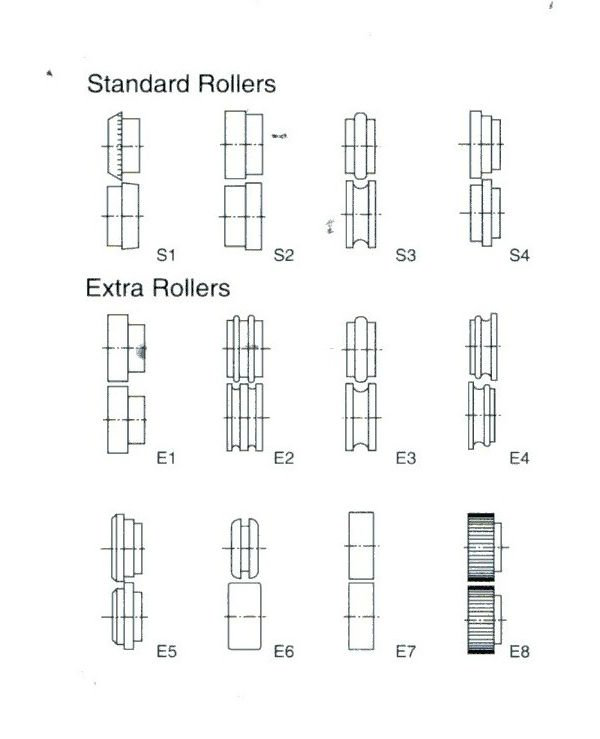

ROLLER FOR ETB-25/ETB-40
