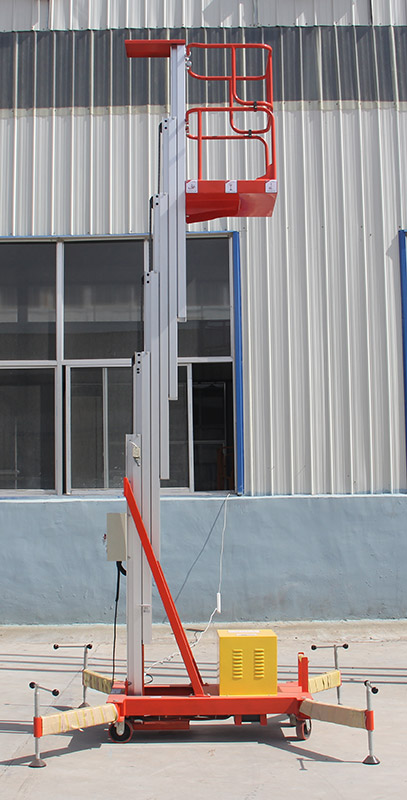

THREE MAST ALUMINUM LIFT

Home > Products > TRANSPORT > ALUMINUM ALLOY LIFT TABLE > THREE MAST ALUMINUM LIFT
SJL 0.3-20(three)

Order No.:
Stock: 1-10
Delivery Time: 30

Without Tax: $
Machine video: 4000-9999

QUICK OVERVIEW

--- Light weight, easy to move, one person can move it,  improve the work efficiency  --- Dimension is very small, is suitable for narrow space.  --- Hydraulic drive, easy to operate. --- Flexible movement, non-trace universal wheel, no damage to the ground.  --- Compact structure. Small size make lift could go through normal door or elevator, and work in narrow space.

Contact us
Model Dimension Platform Load Capacity Weight (kg)
(mm) (mm) (kg)
SJL0.1-4(single) 1100*850*1980 600*600 100 370kg
SJL0.1-6(single) 1200*850*1980 600*600 100 380kg
SJL0.1-8(single) 1300*850*1980 600*600 100 430kg
SJL 0.1-10(single) 1400*850*1980 600*600 100 540kg
SJL 0.2-6(double) 1300*900*1980 1200*600 200 550kg
SJL 0.2-8(double) 1400*900*1980 1200*600 200 580kg
SJL 0.2-10(double) 1900*1000*1980 1500*600 200 630kg
SJL 0.2-12(double) 2000*1000*1980 1550*600 200 730kg
SJ 0.2-14(double) 2000*1000*2280 1600*600 200 940kg
SJL 0.2-16 (double) 3000*1500*2200 1500*600 200 1400kg
SJL 0.3-16(three) 2500*1300*2400 1800*850 300 1650kg
SJL 0.3-18(three) 2500*1300*3000 1800*850 300 2000kg
SJL 0.3-20(three) 3000*1500*2200 1500*600 300 2200kg
- A trailing aluminum lift is perfect for aerial installation and maintenance jobs at sites without a power supply.

- The aluminum lift is characterized by its manual move, portability, and ease of use.

- For flexibility, the lift can be controlled from on the ground or in the platform.

- It is also easily customizable; the lifting height, motor, and even color can all be made according to your needs.
