SJL 0.2-6(Double-Mast)
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 2500-3000
QUICK OVERVIEW

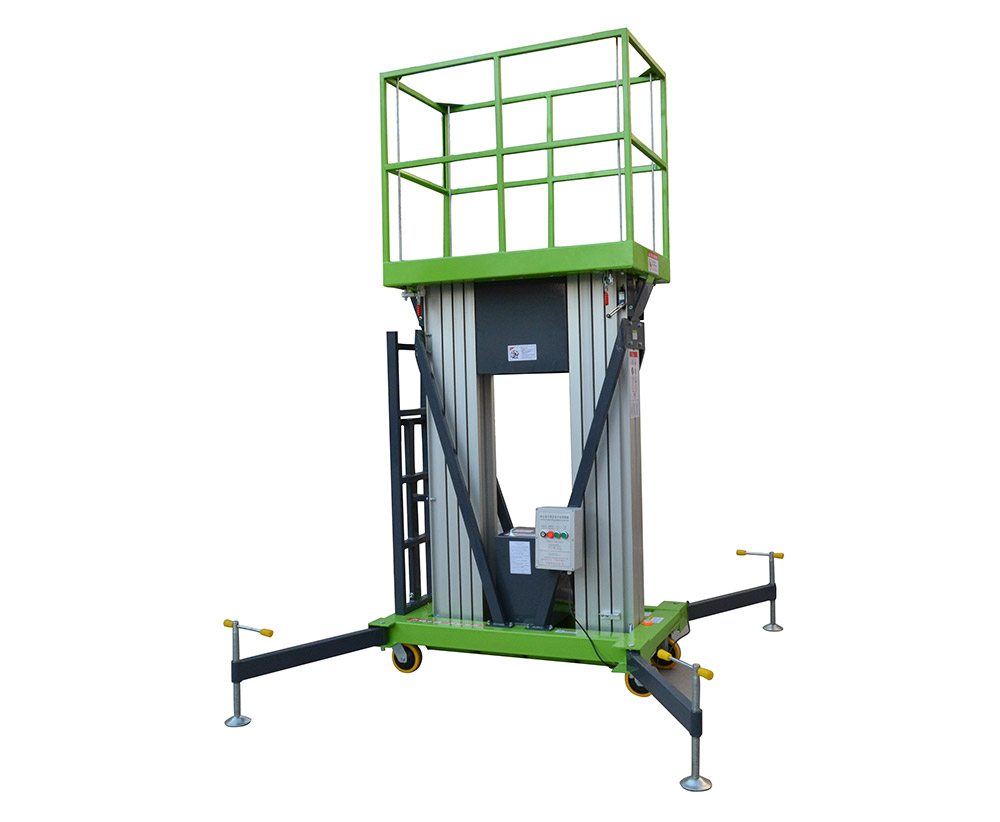

Electric aluminum alloy lift platform is characterized by light weight, compact size and easy to move. Aluminum alloy material adopted enable one worker move the vertical lift to enter into narrow door or elevator smoothly. This unit can be used in hotel, airport, theatre or museum. Non-trace universal polyurethane wheels used will be no damage to ground floor.
Contact us
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 2500-3000
QUICK OVERVIEW
Electric aluminum alloy lift platform is characterized by light weight, compact size and easy to move. Aluminum alloy material adopted enable one worker move the vertical lift to enter into narrow door or elevator smoothly. This unit can be used in hotel, airport, theatre or museum. Non-trace universal polyurethane wheels used will be no damage to ground floor.
Contact us
| Model | Lifting height(m) | Power(kw) | Self-respect(kg) | Load(kg) | Maximum dimensions(mm) | Table size(mm) |
| SJL02-6 | 64 | 1.5 | 450 | 200 | 1750*800*1950 | 1300*600*1100 |
| SJL02-8 | 8 | 1.5 | 580 | 200 | 1900*800*1950 | 1450*600*1100 |
| SJL02-10 | 10 | 1.5 | 730 | 200 | 1900*800*1950 | 1450*600*1100 |
| SJL02-12 | 12 | 1.5 | 850 | 200 | 2000*890*2080 | 1650*600*1100 |
| Safety Features |
| -Explosions proof valves, which protect the hydraulic pipe and prevent rupture |
| -Spillover valve, which prevents high pressure when the lift rises |
| -Emergency decline valve, which smoothly lowers the lift in case of an emergency |
| After-sale service： |
| A. We offer 12 month warranty apart from artificial faults, during warranty time, we will bear the cost of parts and freight. |
| B. If it is necessary for you, our engineer are available to service machinery overseas. |
| C. We offer 24 hours service for technical support and any assistance. |
| 1.Travel switch: The lifter will stop automatically when touch it. |
| 2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely. |
| 3. Outrigger: guarantee stability of whole machine when work. |
| 4. Hydraulic power unit: Lisheng brand, long time service life. |
| 5. Aluminum alloy profile: make whole machine with light weight. |
| 6. Double chains: Keep safe. |
| 7. Locking key switch on control distributor |
| 8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency. |
| 9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor. |
