SJL0.1-8((Single-Mast )
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 2500-3000
QUICK OVERVIEW

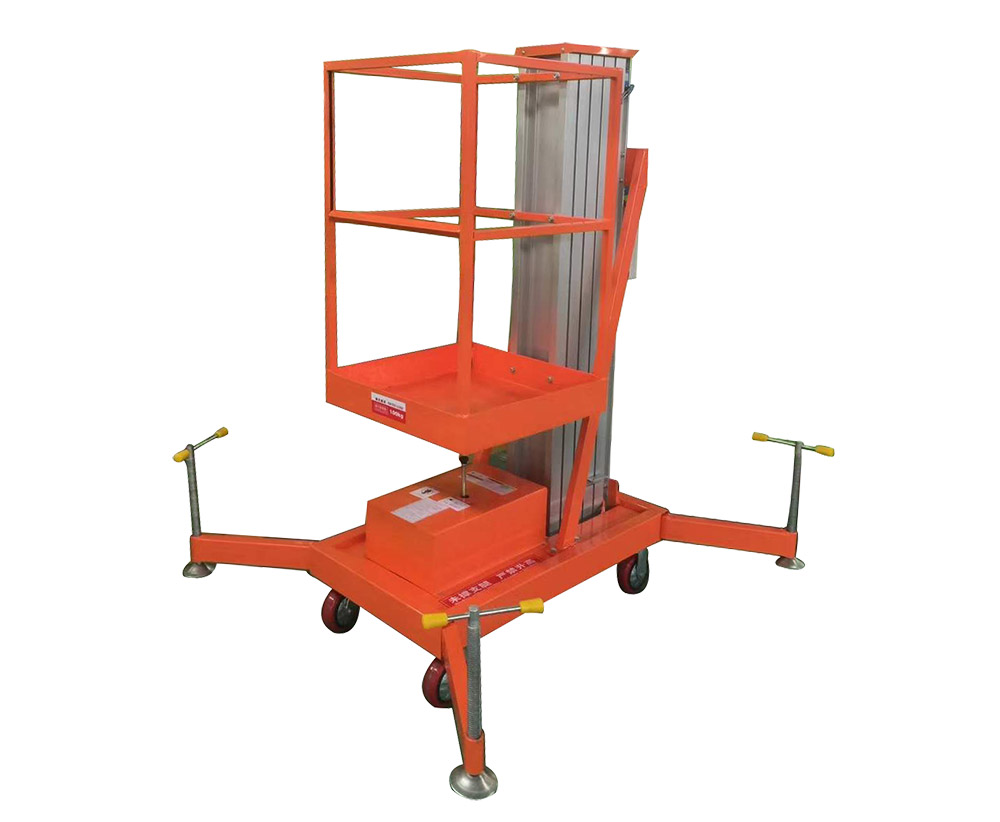

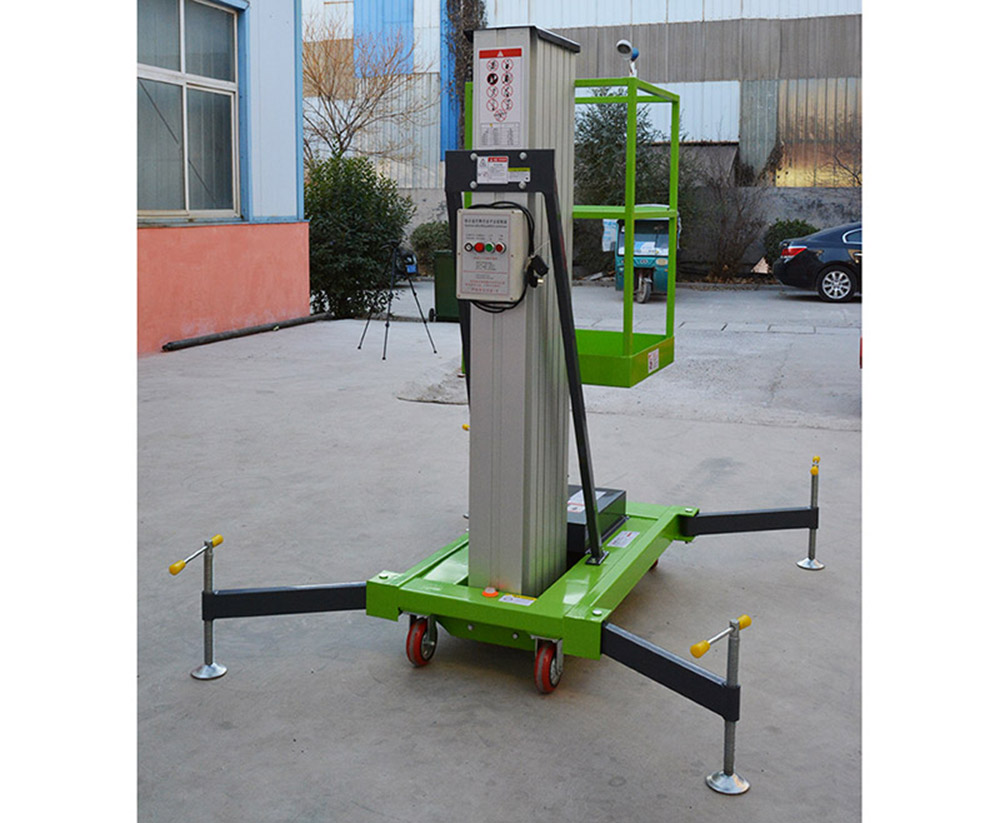

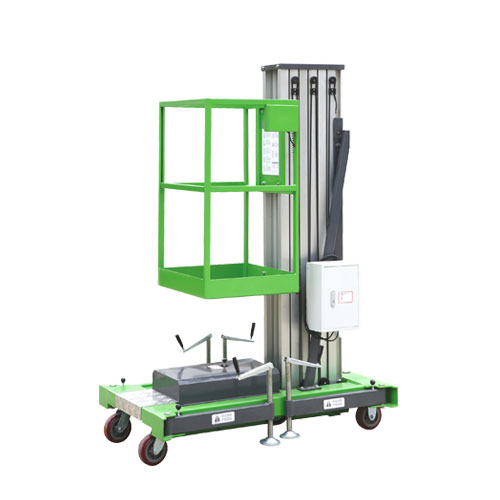

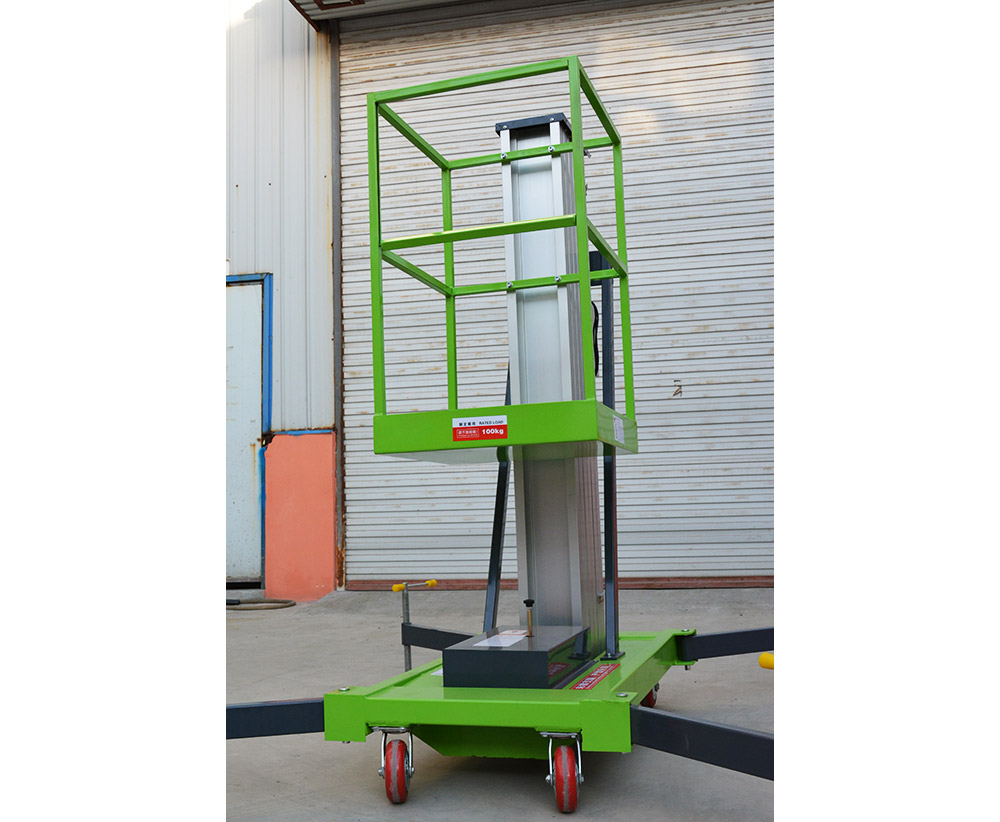

-Aluminum lift is perfect for aerial installation and maintenance jobs at sites without a power supply. -The aluminum lift is characterized by its manual move, portability, and ease use. -For flexibility, the lift can be controlled on the ground or in the platform. -It is also easily customizable; the height, motor, and color can all be made according to your needs.
Contact us
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 2500-3000
QUICK OVERVIEW
-Aluminum lift is perfect for aerial installation and maintenance jobs at sites without a power supply. -The aluminum lift is characterized by its manual move, portability, and ease use. -For flexibility, the lift can be controlled on the ground or in the platform. -It is also easily customizable; the height, motor, and color can all be made according to your needs.
Contact us
| Model | SJL0.1-4 | SJL0.1-6 | SJL0.1-8 | SJL0.1-10 |
| Capacity | 100kg | 100kg | 100kg | 100kg |
| Max. Occupants | 1 | 1 | 1 | 1 |
| Max. working height | 5.7m | 7.7m | 9.7m | 11.7m |
| Platform height | 4.0m | 6 | 8.0m | 10.0m |
| Platform size | 0.6x0.6m | 0.6x0.6m | 0.6x0.6m | 0.6x0.6m |
| Overall length | 1.3m | 1.3m | 1.3m | 1.3m |
| Overall width | 0.8m | 0.8m | 0.8m | 0.8m |
| Overall height | 1.8m | 1.96m | 1.9m | 2.18m |
| Lifting motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
| Weight | 260kg | 280kg | 320kg | 480kg |
| Safety Features |
| -Explosions proof valves, which protect the hydraulic pipe and prevent rupture |
| -Spillover valve, which prevents high pressure when the lift rises |
| -Emergency decline valve, which smoothly lowers the lift in case of an emergency |
| Compact： |
| When not in use, the supporting leg can be folded up to save space. |
| Before lifting the lift up, we must open the supporting leg, it can make the aluminum |
| lift more stable. |
| Application： |
| It is mainly used for the installation and maintenance of the narrow spaces such as |
| star hotels,modern workshops, |
| business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls. |
| Advantages： |
| A. The Lift is light weight, good flexibility, and suitable for two people to operate. |
| B. Beautiful structure, light weight. |
| C.Compact structure, small size transport state, can enter narrow and small area. |
| D.Safety protection device and imported pump, increases the service life and safety assurance. |
| After-sale service： |
| A. We offer 12 month warranty apart from artificial faults, during warranty time, |
| we will bear the cost of parts and freight. |
| B. If it is necessary for you, our engineer are available to service machinery overseas. |
| C. We offer 24 hours service for technical support and any assistance. |
| Feature: |
| 1. Travel switch: The lifter will stop automatically when touch it. |
| 2. Control panel: control button on platform; control box on ground, which enable user |
| operate lift more freely. |
| 3. Outrigger: guarantee stability of whole machine when work. |
| 4. Hydraulic power unit: Lisheng brand, long time service life. |
| 5. Aluminum alloy profile: make whole machine with light weight. |
| 6. Double chains: Keep safe. |
| 7. Locking key switch on control distributor |
| 8. Auxiliary platform lowered device: User can push this button to make lift fall down |
| when meet an emergency. |
| 9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor. |
