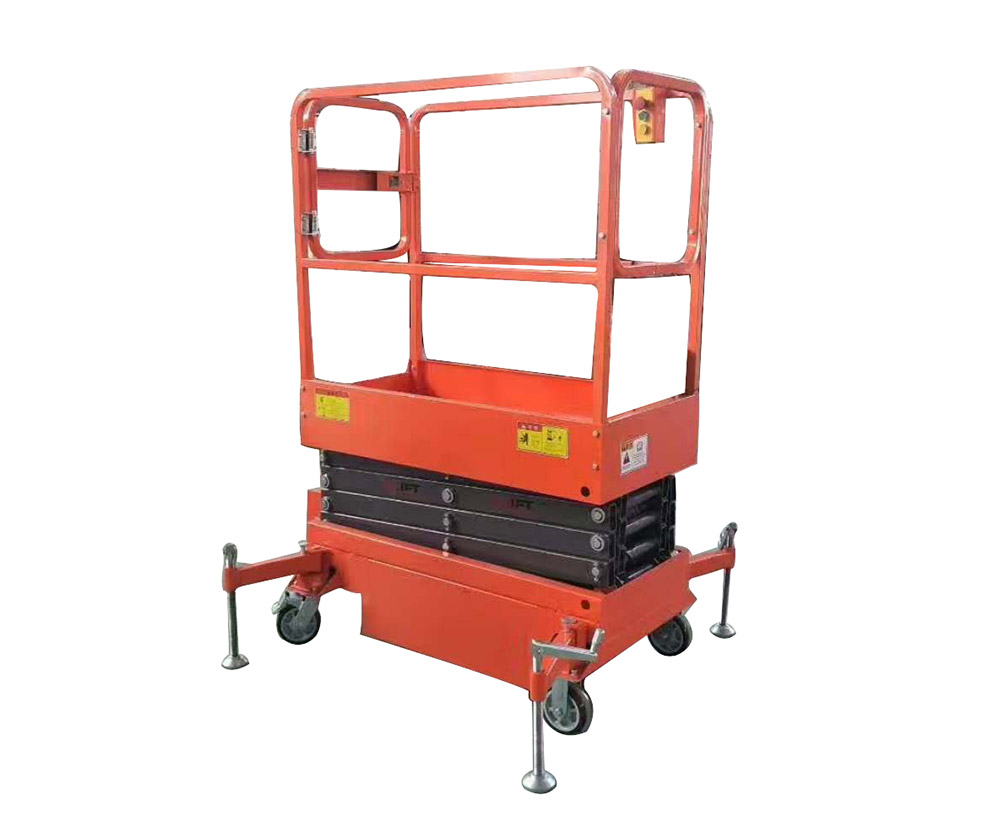

SELF-PROPELLED SCISSOR LIFT

Home > Products > TRANSPORT > SELF-PROPELLED SCISSOR LIFT
SPS0.23-6

Order No.:
Stock: 1-10
Delivery Time: 30

Without Tax: $
Machine video: 14000-18000

QUICK OVERVIEW

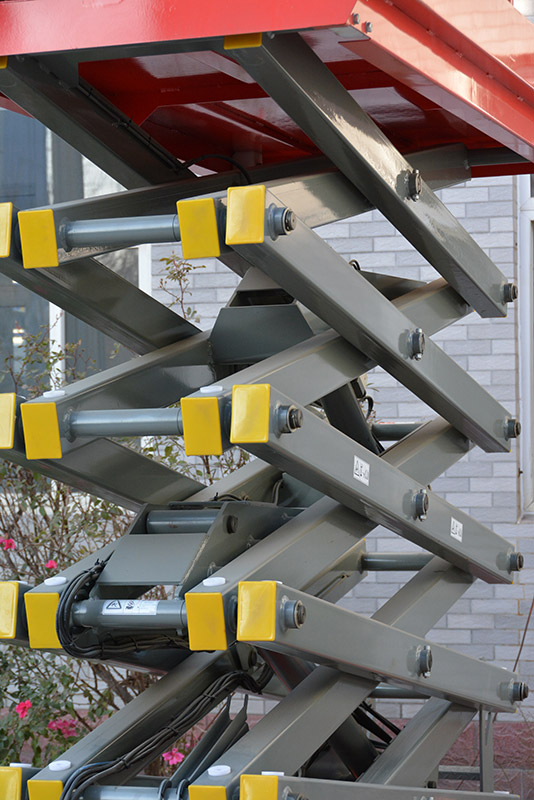

vertical lift and platform extension, self propelled scissor lift is suitable for indoor and outdoor environment and is widely used for the maintenance, equipment installations at construction sites, workshops, airports, power industry, petrochemical industry, etc. Scissor structure guarantees stable lifting, and one-person operation improves the efficiency. .

Contact us

Model No. SPS0.28-5 SPS0.23-6 SPS0.45-8 SPS0.32-10 SPS0.23-12
Working height Maximum 6.5m 7.65m 9.7m 11.5m 13.74m
Platform height Maximum 4.8m 6.15m 8m 9.8m 12.04m
Lift capacity 280kg 230kg 450kg 320kg 230kg
Length 1.89m 1.89m 2.45m 2.44m 3.08m
Width 0.76m 0.76m 1.15m 1.15m 1.75m
Height (stowed) 2.2m 2.4m 2.4m 2.54m 2.88m
Platform height minimum 1.17m 1.25m 1.2m 1.39m 1630mm
Platform measurement 1.79*0.74m 1.79*0.74m 2.43*1.13m 2.43*1.13m 2.92*1.65m
Length extension deck 0.9m 0.9m 0.9m 0.9m 1.1m
Ground clearance-center 60/20mm 60/20mm 100/20mm 100/20mm 0.2m
Turning radius minimum 1.6m 1.6m 2.3m 2.3m 4.5m
Travel speed (stowed) 3.2km/h 3.2km/h 3.2km/h 3.2km/h 3.2km/h
Travel speed (raised) 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Grade ability 25% 25% 25% 25% 20%
Tire 0.305*0.1m 0.305*0.1m 0.38*0.125m 0.38*0.125m 0.6*0.19m
Weight 1350kg 1580kg 2250kg 2610kg 3450kg
Lift motor 24/3 v/kw 24/3 v/kw 24/3 v/kw 24/3 v/kw 48/5 v/kw

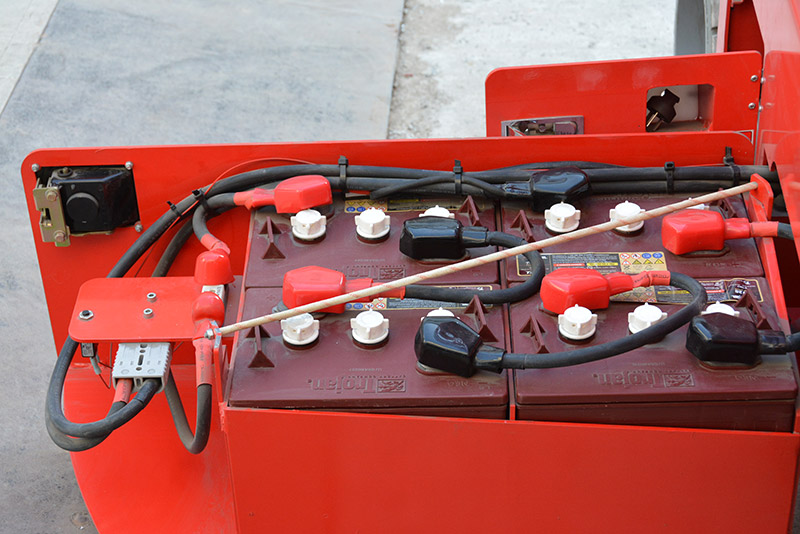

Maintenance-free Battery 4*6/230 V/AH 4*6/230 V/AH 4*6/230 V/AH 4*6/230 V/AH 8*6/215 V/AH
Charger 24/20-30 V/A 24/20-30 V/A 24/20-30 V/A 24/20-30 V/A 48/50 v/kw
1.Folding guardrails conforms with international safety standard, which can effectively protect the safety of high-altitude operation.
2.The operator can control the movement, lifting and descending to realize continuous operation at high altitudes.
3.Installed with emergency stop which to protect personal safety.
