WL0.25-6.0
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 3500-4500
QUICK OVERVIEW

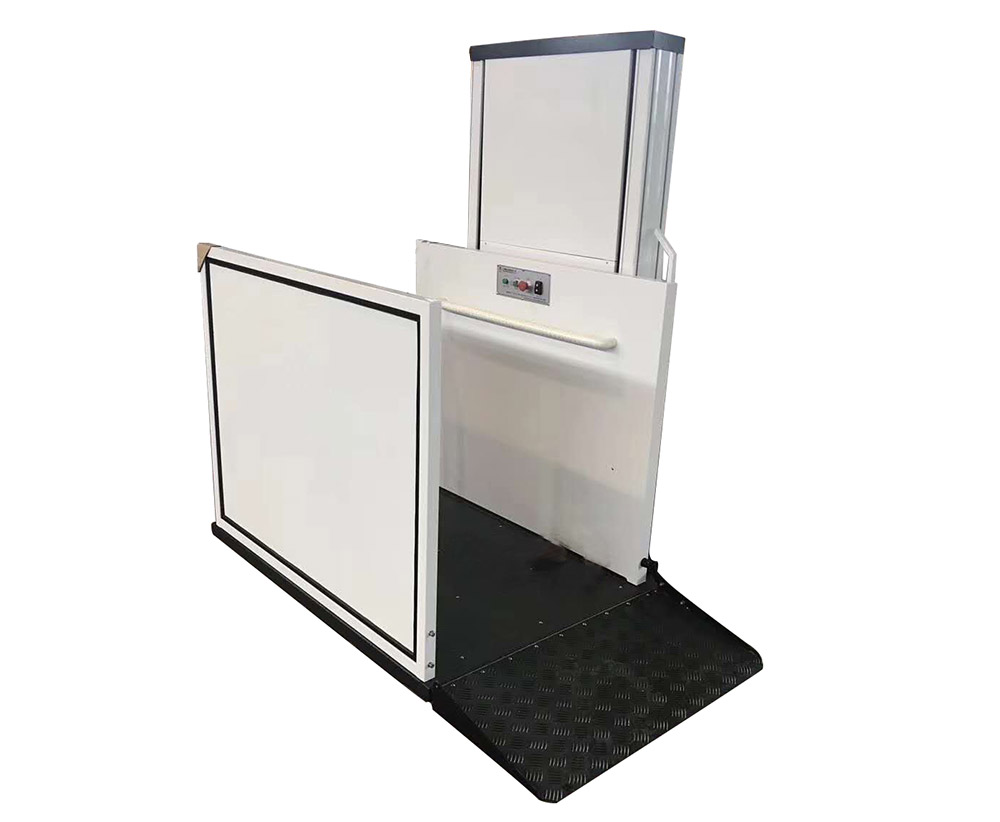

--Wheelchair lift is one special lift elevator for the disabled. ---Widely used at home, or in supermarket, theatre, musem, hospital or other pulic places. ---Indoor or outside is OK. ---With CE approved, and could be customer-made.
Contact us
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 3500-4500
QUICK OVERVIEW
--Wheelchair lift is one special lift elevator for the disabled. ---Widely used at home, or in supermarket, theatre, musem, hospital or other pulic places. ---Indoor or outside is OK. ---With CE approved, and could be customer-made.
Contact us
| Platform size | 1200mm(L)* 1000mm(W) | |
| Dimension | 1200mm(L)*1000mm(W)* Travel height +700~1100 mm(H) | |
| Max Platform Height | 6000mm | |
| Min Platform height | 80mm | |
| Configuration | Open through or front and side entrances | |
| Speed | 60mm/s | |
| Load capacity | 250KG~350KG | |
| Control voltage | 24V/DC | |
| Power Output | 1.1KW | |
| Power Input | 220V/50HZ/25A (or customized for local power supply) | |
| Drive System | Hydraulic | |
| Control Mode | Inching Switch or Automatic | |
| Drive Control | Self-resetting system | |
| Overload | Protection Over current relay | |
| Material of Platform | Checkered slip-proof aluminum alloy | |
| Painting | Plastic electrostatic spraying | |
| Guard panel & drive cabinet (framework) | Aluminum Alloy / 304 stainless steel | |
| Operation Panel | Polished aluminum Alloy | |
| Safety Wane Working Range | 75° | |
| Working Condition | Both indoors and outdoors | |
| Working temperature | From -10°~60°C | |
| Installation | Non-pit installation, directly fixed to concrete floor (the concrete | |
| floor below the platform shall not be lower than the ground) | ||
| Control Device | Calling box (installed on the wall nearby) and remote | |
| controller(Extra optional) | ||
| Emergency Stop | The lifting and lowering process can be stopped immediately | |
| by pressing the emergency button. | ||
| Safety device | Safety Interlock | Lock the platform when it is out of control |
| Safety Sensor | The operation must be stopped immediately the | |
| safety edge meets obstacles during operation. | ||
| Emergency lowering | The platform can be lowered by opening | |
| hydraulic valve manually or rolling screw rod. | ||
| Auto-flap | Turn up after lifting | |
