Liner Encoder MK-300
Order No.:
Stock: 30
Delivery Time: 30
Without Tax: $
Machine video: 999-999
QUICK OVERVIEW

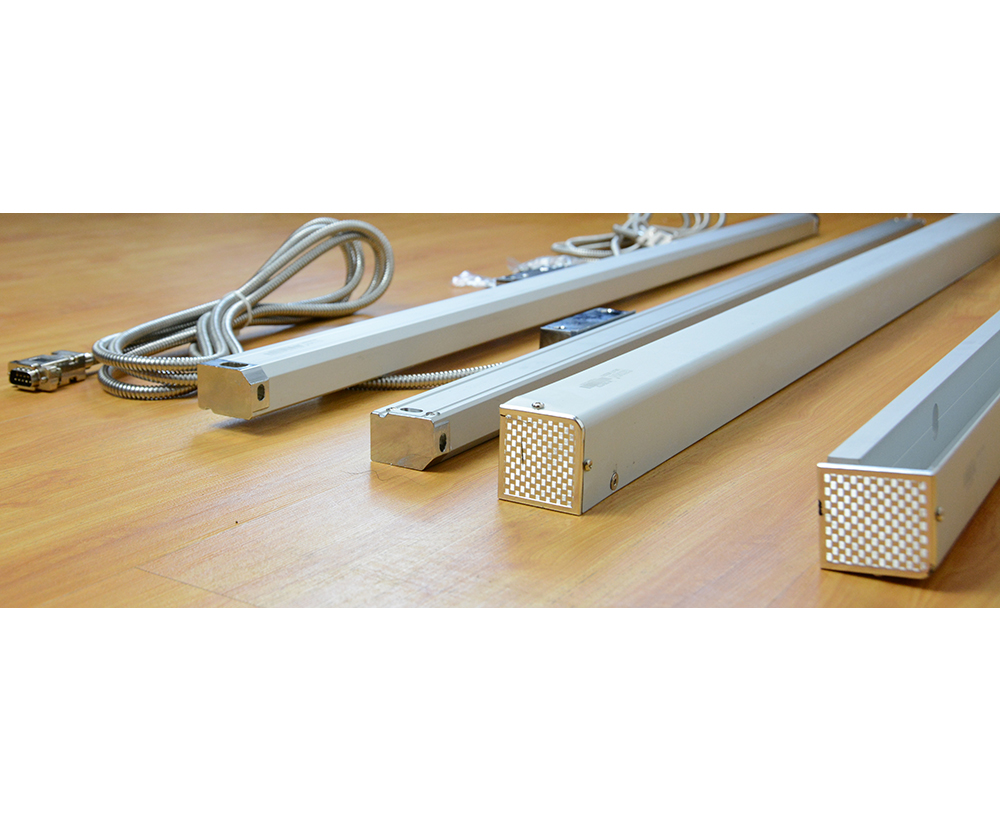

Product Description: MK-300 is linear bearing scale based on optical principle. It offers resolutions down to 0.1µ, with repeat accuracy of one count. It possesses IP54 rating. This compact design helps in easy mounting in congested spaces. Offering lengths from 70mm to 2040mm, this scale is a preferred choice for high accuracy machining and metrology applications.
Contact us
Order No.:
Stock: 30
Delivery Time: 30
Without Tax: $
Machine video: 999-999
QUICK OVERVIEW
Product Description: MK-300 is linear bearing scale based on optical principle. It offers resolutions down to 0.1µ, with repeat accuracy of one count. It possesses IP54 rating. This compact design helps in easy mounting in congested spaces. Offering lengths from 70mm to 2040mm, this scale is a preferred choice for high accuracy machining and metrology applications.
Contact us
| SPECIFICATIONS: | |
| Feature | Details |
| Resolution | 0.1 / 0.5 / 1 / 5 / 10 µm |
| Grating Pitch | 40 µm |
| Accuracy Class | +5 / + 10 / +20µ m |
| Resolution | +1 Resolution Count |
| Measuring Lengths (mm) | 70, 120, 170, 220, 270, 320, 370, 420, 470, 520, 620 |
| 720, 770, 820, 920, 1020, 1120, 1240, 1340, 1440, | |
| 1540, 1640, 1740, 1840, 1940, 2040 | |
| Current Consumption | Typ. 100mA Max 150mA |
| Power Supply | + 5 VDC ( +5%) |
| Output Signal | RS422, 11µA, 1 Vp-p |
| Reference Mark | At 15mm from start then after every 25mm |
| Operating Temperature | 10°C to +50°C / 50°F to +122°F |
| Storage Temperature | -20°C to +60°C / -4°F to +158°F |
| Relative Humidity | 20% to 80% Non-condensing |
| Standard Cable Length | 3 meter up to 820mm armoured or non-armoured 5 meter above 820mm armoured or non-armoured or |
| Max. Cable Length | 20 meters |
| 2 m/s at 1µm and above resolutions | |
| Measurement Speed | 0.5 m/s below 1µm resolutions |
