ZX32HS ZX40HS
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 2200-2800
QUICK OVERVIEW
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 2200-2800
QUICK OVERVIEW
Contact us

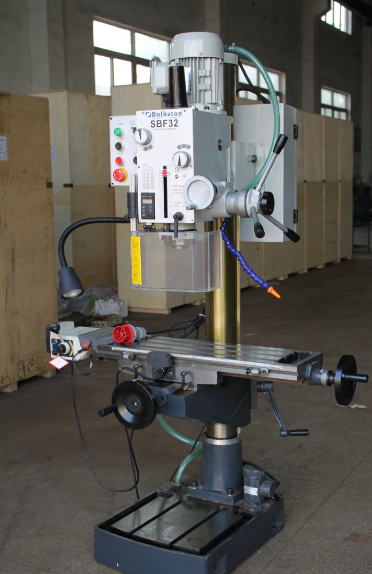

| Model | Unit | SBF32/40 |
| Max. Drilling dia (Steel/Iron) | mm | 31.5/40 |
| Max milling capacity(Face/End) | mm | 80/32 |
| Spindle taper | MT3/MT4/R8/ISO30 | |
| Worktable Size | mm | 600×190 |
| Worktable travelX/Y | mm | 370/190 |
| Dimensions of base | mm | 650×450 |
| Spindle travel | mm | 130 |
| Spindle center to column surface | mm | 275 |
| Spindle nose to worktable | mm | 610 |
| Spindle nose to base | mm | 1180 |
| Diameter of column | mm | 115 |
| Spindle speed(option ) | rmp | 6steps:60Hz 90~1970 50Hz 75~1600 |
| Motor | kw | 1.1 |
| N．W/G.W | KG | 350/400 |
| Packing size(L×W×H) | mm | 820×720×1830 |
| Sdts/20′Container | sets | 21 |
