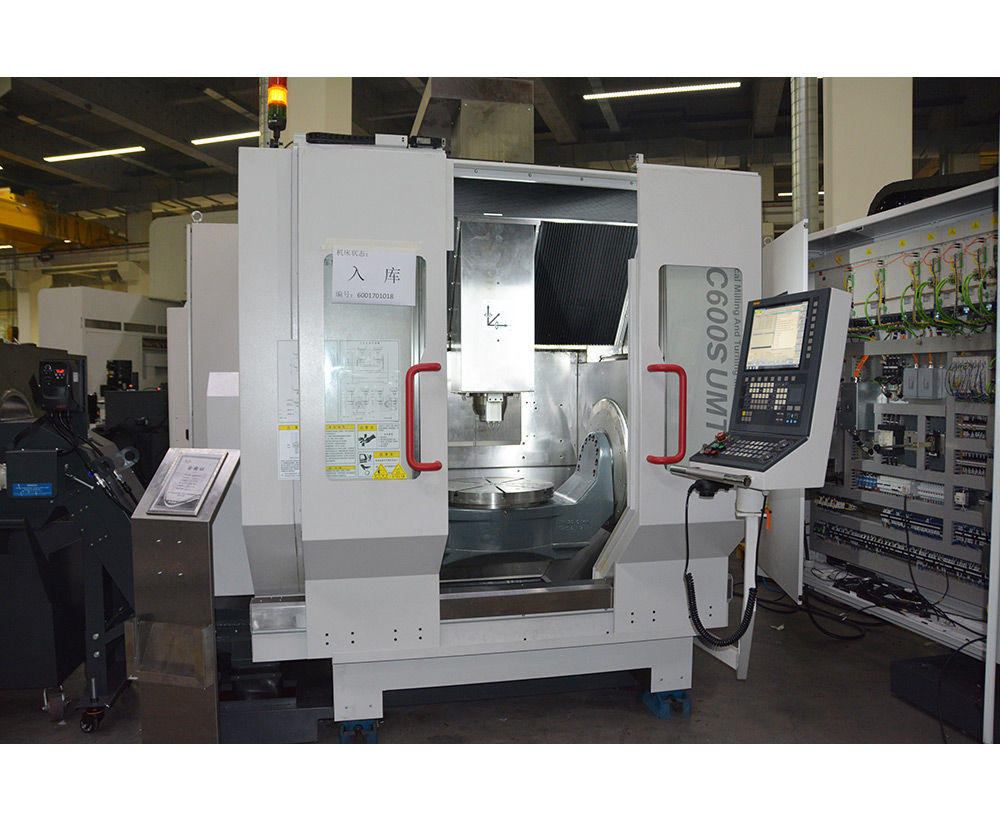

KMC600-U (5 axis)
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://youtu.be/j17KhkofCw8?t=34
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://youtu.be/j17KhkofCw8?t=34
QUICK OVERVIEW
Contact us
| model | KMC-600U | KMC-600MT |
| machine area | ||
| max. diameter of workpiece | 800mm | 800mm |
| max. width for milling(X/Y) | 650mm | 650mm |
| max. height for milling(Z) | 450mm | 450mm |
| diameter of rotatory table | 650mm | 650mm |
| max. weight of workpiece | 1000Kg | 500Kg |
| range of movement | ||
| X | 650mm | 650mm |
| Y | 650mm | 650mm |
| Z | 450mm | 450mm |
| A | （-130°-- +130°） | （-130°-- +130°） |
| C | no limit | no limit |
| Spindle | ||
| Type | synchronization Motor spindle | synchronization Motor spindle |
| Max torque（S6 25%） | 180Nm | 125Nm |
| max. speed | 10000/14000/18000rpm | 10000/14000/18000rpm |
| Rated power | 30kW | 30kW |
| Tool adapter | HSK A63 | HSK A63 |
| spindle brake | nonsupport | support |
| A axis | ||
| Type | Dual drive by motor | Dual drive by motor |
| torque(S1/S6) | 3760Nm | 3760Nm |
| C axis | ||
| Type | Diercet drive by torque motor | Diercet drive by torque motor |
| torque(S1/S6) | 860Nm | 700Nm |
| Max. speed of feedrate | ||
| X | 48m/min | 48m/min |
| Y | 48m/min | 48m/min |
| Z | 48m/min | 48m/min |
| A | 30rpm | 30rpm |
| C | 80rpm | 80rpm(milling)/800rpm(turning) |
| Precison of position(20±1°C) | ||
| X | 8μm | 8μm |
| Y | 8μm | 8μm |
| Z | 5μm | 5μm |
| A | 8" | 8" |
| C | 5" | 5" |
| Repetition | ||
| X | 5μm | 5μm |
| Y | 5μm | 5μm |
| Z | 3μm | 3μm |
| A | 5" | 5" |
| C | 3" | 3" |
