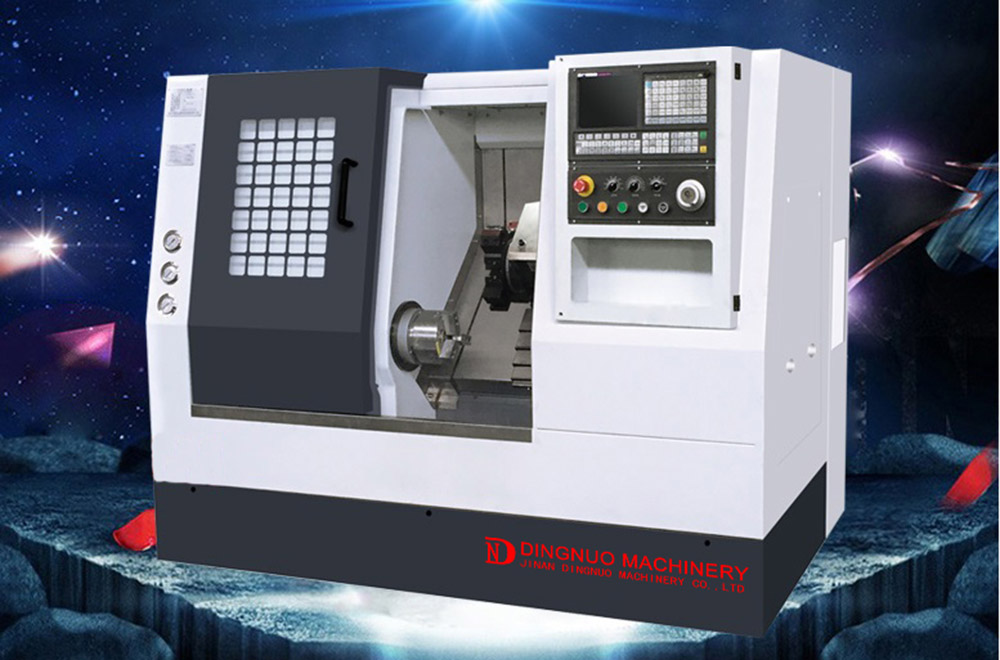

CK320 TT
Order No.:Good quality 2
Stock: 24 Months warranty！！！
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/watch?v=fhqa9vrLTfY
QUICK OVERVIEW
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. High speed at 5000r/min. First-class precision spindle bearing. High precision ball screw, fast feeding for high working efficiency. All-closed stainless steel protection, strong liquid protection without any water leak. 8 position hydraulic turret, easy machining for complex parts.
Contact us
Order No.:Good quality 2
Stock: 24 Months warranty！！！
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/watch?v=fhqa9vrLTfY
QUICK OVERVIEW
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. High speed at 5000r/min. First-class precision spindle bearing. High precision ball screw, fast feeding for high working efficiency. All-closed stainless steel protection, strong liquid protection without any water leak. 8 position hydraulic turret, easy machining for complex parts.
Contact us
| Configuration/Type | UNIT | C320K TT with CE | ||
| Maximum Swing Over Bed | mm | 320 | ||
| Maximum Swing Over Slide | mm | 140 | ||
| Maximum Machining Length | Collet | mm | 250 | |
| Chuck | mm | 245 | ||
| Spindle Head Type | GB59001 | A2-5 | ||
| Spindle Taper Hole | ø/mm | 52 | ||
| Maximum Diameter of Bore | Manual Chuck | ø/mm | ||
| Hydraulic Through Chuck | ø/mm | 38 | ||
| Spindle Speed Range | r/min | 60-5000 | ||
| Spindle Shift Mode | servo | |||
| Spindle Rated Torque | Nm | 24 | ||
| Main Motor Power | Kw | 3.7 | ||
| Spindle Motor Maximum Speed Range(30 Min) | Kw | 5.5 | ||
| Chuck Type | Hydraulic Through or None Through Chuck | |||
| Chuck Size | ø/mm | 160 | ||
| Rapid Traverse Speed On X/Z -axis | m/min | 12/15 | ||
| Servo Motor Torque On X/Z -axis | Nm | 6 | ||
| X/Z -axis Travel | mm | 175/310 | ||
| Ball Screw | X-axis | mm | 12/25 | |
| Diameter / Thread | Z-axis | Oct-32 | ||
| Guideway Type | PMI(Taiwan) Linear Guideway | |||
| Linear Guideway width X/Z -axis | mm | 25/ 30 | ||
| Turret Type | Torque Electric 8 Tool Post (PRAGATI) | |||
| Turret Change Time | °/sec | 45/0.17 | ||
| Turning Tools /Boring Bar Size | mm | 20*20/ ø 25 | ||
| Hydraulic Tailstock Sleeve Diameter/Travel | mm | ø65/70 | ||
| Tailstock Type | Hydraulic Tailstock | |||
| Internal Taper of Tailstock Sleeve | MT4 | |||
| Dimension / Weight | L*W*H(mm) | 1650x1250x1650 / 1800kg | ||
| Optional Configuration | ||||
| Hydraulic Collet | Ø48mm | |||
| Hydraulic Through Chuck (AUTOGRIP Made in Taiwan) | ø160mm | |||
| SAUTER Post Turret(Germany) | ||||
| Chips Conveyor | Hinge-Belt | |||
