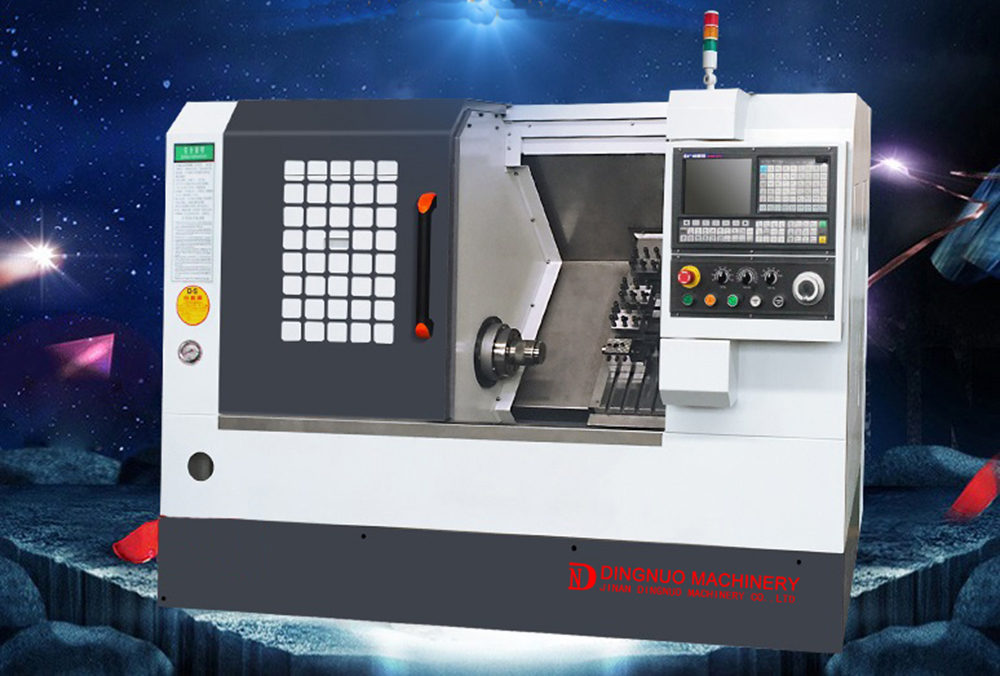

CK320K
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/watch?v=bWN62AHenbs
QUICK OVERVIEW
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. High speed at 5000r/min. First-class precision spindle bearing. High precision ball screw, fast feeding for high working efficiency. All-closed stainless steel protection, strong liquid protection without any water leak. Gang type turret, easy machining for complex parts.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video: https://www.youtube.com/watch?v=bWN62AHenbs
QUICK OVERVIEW
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. High speed at 5000r/min. First-class precision spindle bearing. High precision ball screw, fast feeding for high working efficiency. All-closed stainless steel protection, strong liquid protection without any water leak. Gang type turret, easy machining for complex parts.
Contact us
| Configuration/Type | UNIT | C320K with CE | |||
| Maximum Swing Over Bed | mm | 320 | |||
| Maximum Swing Over Slide | mm | 140 | |||
| Maximum Machining Length | Collet | mm | 250 | ||
| Chuck | mm | 245 | |||
| Spindle Head Type | GB59001 | A2-5 | |||
| Spindle Taper Hole | ø/mm | 52 | |||
| Maximum Diameter of Bore | Manual Chuck | ø/mm | |||
| Hydraulic Through Chuck | ø/mm | 38 | |||
| Hydraulic None Through Chuck | ø/mm | 0 | |||
| Spindle Speed Range | r/min | 60-5000 | |||
| Spindle Shift Mode | Servo | ||||
| Spindle Rated Torque | Nm | 24 | |||
| Main Motor Power | Kw | 3.7 | |||
| Spindle Motor Maximum Speed Range(30 Min) | Kw | 5.5 | |||
| Chuck Type | Hydraulic Through or None Through Chuck | ||||
| Chuck Size | ø/mm | 160 | |||
| Rapid Traverse Speed On X/Z-axis | m/min | 18/18 | |||
| Servo Motor Torque On X/Z-axis | Nm | 6/6 | |||
| X/Z -axis Travel | mm | 315/220 | |||
| Ball Screw | X-axis | mm | 10/25 | ||
| Diameter / Thread | Z-axis | Oct-32 | |||
| Guideway Type | PMI(Taiwan) Linear Guideway | ||||
| Linear Guideway width X/Z -axis | mm | 25/30 | |||
| Turret Type | Gang Type | ||||
| Turning Tools /Boring Bar Size | mm | 20*20 | |||
| Hydraulic Tailstock Sleeve Diameter/Travel | mm | ||||
| Weight | KG | 1500 | |||
| Dimension | L*W*H(mm) | 1700*1250*1700 | |||
| Optional Configuration | |||||
| Hydraulic Collet | Ø48mm | ||||
| Hydraulic Through Chuck(AUTOGRIP Made in Taiwan) | ø160mm | ||||
| Chips Conveyor | Hinge-Belt | ||||
