G1324 1340
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 2000-3000
QUICK OVERVIEW
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 2000-3000
QUICK OVERVIEW
Contact us

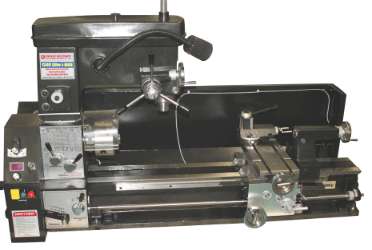

| Multi-Purpose Machine G1324 | ||
| SPECIFICATIONS | G1324 | |
| Swing dia. over bed | 330mm | 13 |
| Swing dia. over table | 190mm | 7.5 |
| Distance between centers | 610mm | 24 |
| Spindle bore | 28mm | 1.1 |
| Spindle speed | 50∼3000r/min | |
| Longitudinal stroke | 510mm | 20 |
| Cross stroke | 185mm | 7.3 |
| Small toolpost stroke | 70mm | 2.75 |
| Metric pitch/grade | 0.35∼6.5mm/24 | |
| Inch pitch/grade | 7∼52T.P.I./21 | |
| Longitudinal feed/grade | 0.067∼0.5mm/r/21 | |
| Cross feed/grade | 0.021∼0.157mm/r/21 | |
| Milling-drilling spindle taper | MT3 | R8 |
| Milling-drilling shaft stroke | 127mm | 5 |
| Milling-drilling box stroke | 110mm | 4.33 |
| Table size | 450×170mm | 17.7×6.7 |
| Drilling dia. | 24mm | 0.95 |
| Power of motor | 1.1kw | |
| N.W./G.W. | 300/350kg | |
| Overall dimensions of machine | 1325×585×1030mm | |
| Case dimensions of machine | 1260×570×1100mm | |
| Case dimensions of stand | Left stand:760×450×410,Rightstand:760×450×350mm | |
