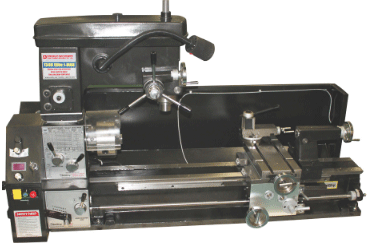

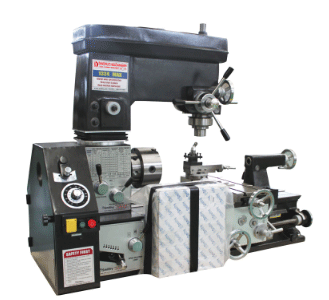

TURNING MILLING COMBINATION MACHINE

Home > Products > METAL > LATHE > TURNING MILLING COMBINATION MACHINE
CQ9107

Order No.:
Stock: 10
Delivery Time: 30

Without Tax: $
Machine video: 2000-3000

QUICK OVERVIEW



Contact us
SPECIFICATION CQ9107
Turning dia. 40mm
Swing dia. over bed 360mm
Distance between centers 300mm
Spindle bore 20mm
Spindle speed / grade 500-1600/3r/min
Longitudinal stroke 210mm
Cross stroke 145mm
Drilling and milling spindle speed / grade 430-2000/5r/min
Max. drilling dia. 16mm
Max. disc milling dia. 63mm
Max. vertical milling dia. 12mm
Table size 200*155mm
Drilling and milling spindle stroke 75mm
Power of motor 370, 370w
N.W. / G.W. 148/210kg
Overal dimensions of machine 890*580*810mm
Case dimensions of machine 1150*580*960mm
 N.W. / G.W.180/260kg; Overall dimensionL×W×H:910×790×810mm; Case dimension (L×W×H):1150×745×910mm; Power of motor0.37/0.554kw
