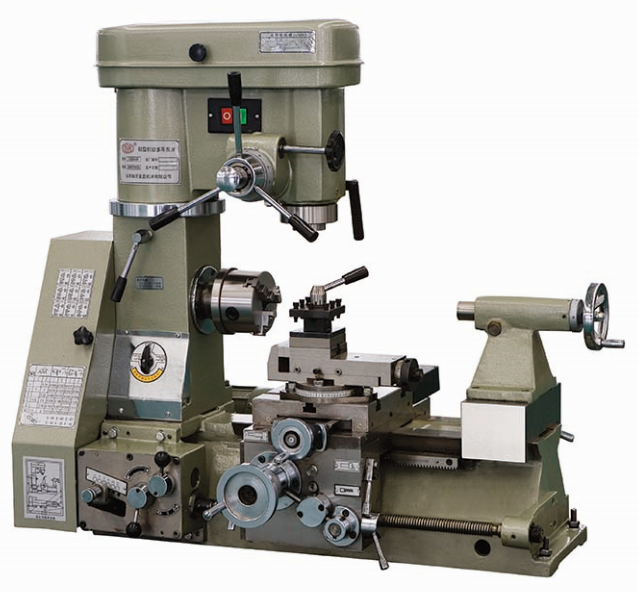

CQA/B 9111
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3000-3500
QUICK OVERVIEW
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3000-3500
QUICK OVERVIEW
Contact us
| SPECIFICATIONS | CQB9111 |
| Swing dia.over bed | 300mm |
| Swing dia.over table | 180mm |
| Spindle speed | 200-1800/9 r/min 250-2010/9 r/min |
| Spindle bore | 20mm |
| Milling-drilling spindle taper | MT2 |
| Longitudinal stroke | 350mm |
| Cross stroke | 200mm |
| Small toolpost stroke | 60mm |
| Metric pitch/grade | 1-3/9 mm |
| Inch pitch/grade | 7-24/12 |
| Longitudinal feed/grade | 0.066-0.226/0.08-0.0264/12(mm/r) |
| Cross feed/grade | 0.037-0.127/0.045-0.15/12(mm/r) |
| Milling-drilling shaft stroke | 95mm |
| Milling-drilling box stroke | 240mm |
| Table size | 210*280mm |
| Drilling dia | 24mm |
| Power of motor | 550(750),550w |
| N.W./G.W. | 310/400kg |
| Overall dimensions of machine | 1250*650*1100mm |
| Case dimensions of machine | 1350*760*1200mm |
