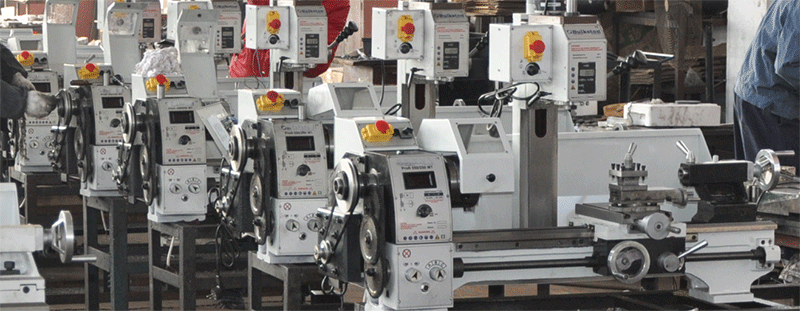

TURNING MILLING COMBINATION MACHINE

Home > Products > METAL > LATHE > TURNING MILLING COMBINATION MACHINE
JYP250V/LV

Order No.:
Stock: 10
Delivery Time: 30

Without Tax: $
Machine video: 1800-2500

QUICK OVERVIEW



Contact us
SPECIFICATION JYP250V
Distance between centers 700mm
Swing over bed 250mm
Swing over cross slide 165mm
Taper of spindle bore MT4
Spindle bore 26mm
Number of spindle speeds 6/variable speed
Range of spindle speeds 125-2000/50-2000rpm
Range of cross feeds 0.02 -0.28mm /r
Range of longitudinal feeds 0.07 -0.40mm /r
Range of inch threads 8-56T.P.I
Range of metric threads 0.2 -3.5mm
Top slide travel 50mm
Cross slide travel 140mm
Tailstock quill travel 80mm
Taper of tailstock quill MT2
Motor 0.75/1.1KW
Packing size 1400 × 700 × 680mm
Net weight 210kg / 230kg
Mill & Drill Specifications
Taper of spindle bore MT2
Spindle stroke 50mm
Spindle speed 50-2250rpm
Max.distance spindle to table 280mm
Max.distance spindle to columm 170mm
Motor 500W
Packing size 1270/1520 × 670 × 930mm
Net weight 180kg / 195kg
Standard Accessories
Name QTY
Splash guard 1pc
Chip tray 1pc
Toolbox &tools 1pc
Drawbar 1pc
Arbor 1pc
Optional Accessories
Name QTY
Four-Jaw Chuck 1pc
Follow Rest 1pc
Steady Rest 1pc
Face Plate 1pc
ER25 Collet chuck 1pc
Speed counter 1pc
Digital depth rule 1pc
Turning Tools 1pc
Back plate 1pc
Stand 1set
