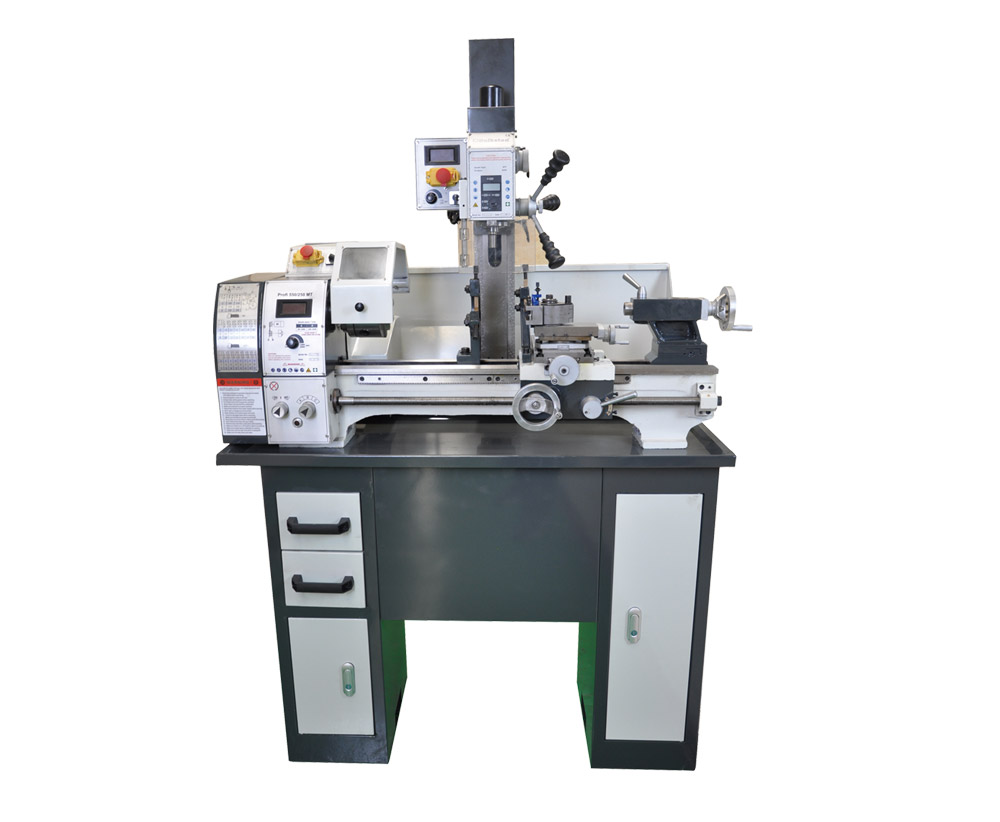

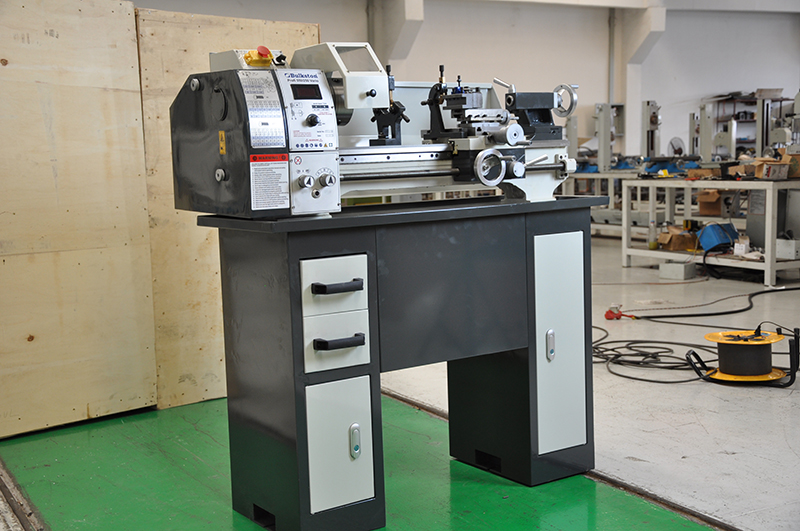

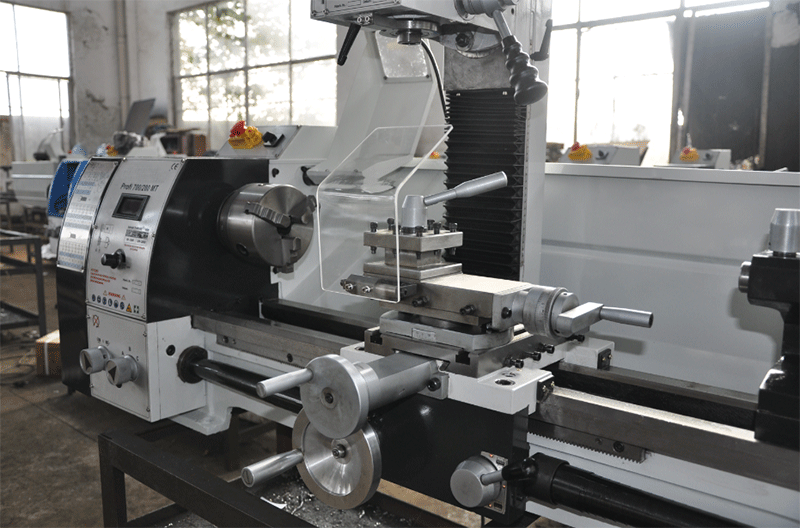

JYP280V/LV
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 2000-3500
QUICK OVERVIEW
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 2000-3500
QUICK OVERVIEW
Contact us
| SPECIFICATION | JYP280V |
| Distance between centers | 700mm |
| Swing over bed | 280mm |
| Swing over cross slide | 165mm |
| Width of bed | 180mm |
| Taper of spindle bore | MT4 |
| Spindle bore | 26mm |
| Number of spindle speeds | 6/variable speed |
| Range of spindle speeds | 125-2000/50-2000rpm |
| Range of cross feeds | 0.02 -0.28mm /r |
| Range of longitudinal feeds | 0.07 -0.20mm /r |
| Range of inch threads | 8-56T.P.I |
| Range of metric threads | 0.4 -3.5mm |
| Top slide travel | 50mm |
| Cross slide travel | 140mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT2 |
| Motor | 1.1KW |
| Taper of spindle bore | MT2 |
| Spindle stroke | 50mm |
| Spindle speed | 50-2250rpm |
| Max.distance spindle to table | 375mm |
| Max.distance spindle to columm | 185mm |
| Main Motor | 600W |
| Packing size | 1400 × 780 × 1070mm |
| Net weight | 230kg / 250kg |
| Standard Accessories | |
| Name | QTY |
| Splash guard | 1pc |
| Chip tray | 1pc |
| Toolbox &tools | 1pc |
| Optional Accessories | |
| Name | QTY |
| Four-Jaw Chuck | 1pc |
| Follow Rest | 1pc |
| Steady Rest | 1pc |
| Face Plate | 1pc |
| Rolling Center | 1pc |
| Stand | 1pc |
| Cutter | 1pc |
| Back plate | 1pc |
