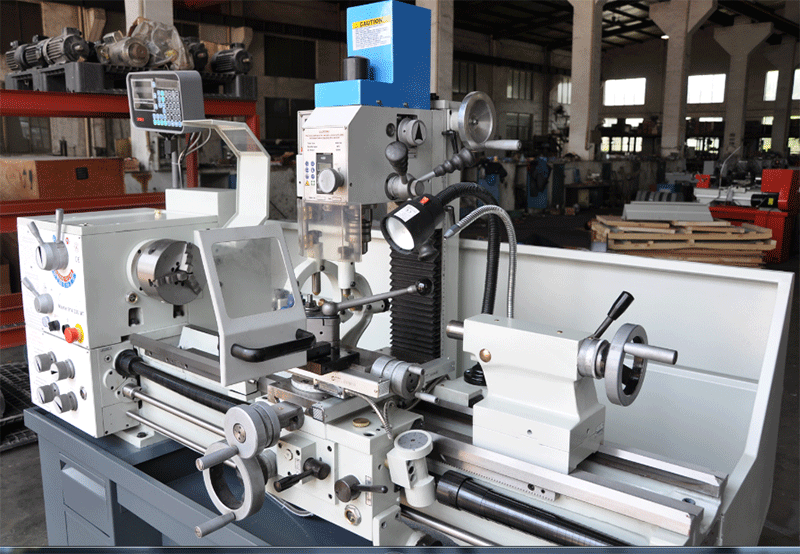

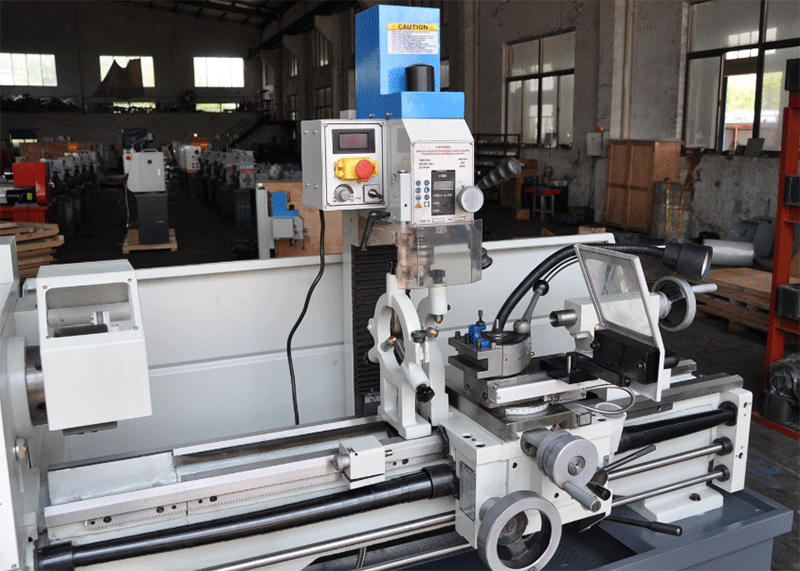

CQ6232 MT
Order No.:
Stock: 10
Delivery Time: 60
Without Tax: $
Machine video: 5000-6500
QUICK OVERVIEW
Contact us
Order No.:
Stock: 10
Delivery Time: 60
Without Tax: $
Machine video: 5000-6500
QUICK OVERVIEW
Contact us
| Specification CQ6232 | |||
| ITEMS | SPECFICATION | ITEMS | SPECFICATION |
| Max. swing over bed | 300 mm(12”) | Max. drilling capacity | 25mm |
| Max. swing over cross slide | Ф180mm(7”) | M ax.distance from bench to spindle nose | 232mm |
| Max. swing over gap | 430mm(17”) | ||
| Distance between centers | 910/1000mm | Spindle speed steps | |
| Variable speed | |||
| Spindle bore | Ф38mm | Spindle soeed scope | 100-1000r/min |
| Taper of spindle bore | MT#5 | ||
| Range of spindle speed | 65-1400 rpm | Size of worktable | 340×120mm |
| Range of longitudinal feeds | 0.079-1.291mm/rev | ||
| Range of cross feeks | 0.017-0.276mm/rev | Max. travel of spindle quill | 80mm |
| Range of metric threads | 0.4-7mm | ||
| Range of inch threads | 4-60TPI | Max. end milling capacity | 25mm |
| Max. travel of tailstock quill | 100mm | Max. face milling capacity | 50mm |
| Taper of tailstock bore | MT#3 | Headstock stroke（Z） | 230mm |
| Motor power | 1.1/1.5kw | Motor | 600W |
| Unitary packing of lathe (mm) | 1680/1850×750×1400 | Net weight | 130KGS |
| Asunder packing of lathe (mm) | 1680/1850×750×740 | A sunder packing of mill head (mm) | 1060×630×740 |
| 700×460×380/300 | |||
| Net weight | 540 kg / 620 kg | Unitary packing of mill combo (mm) | 1680/1940×850×150 |
