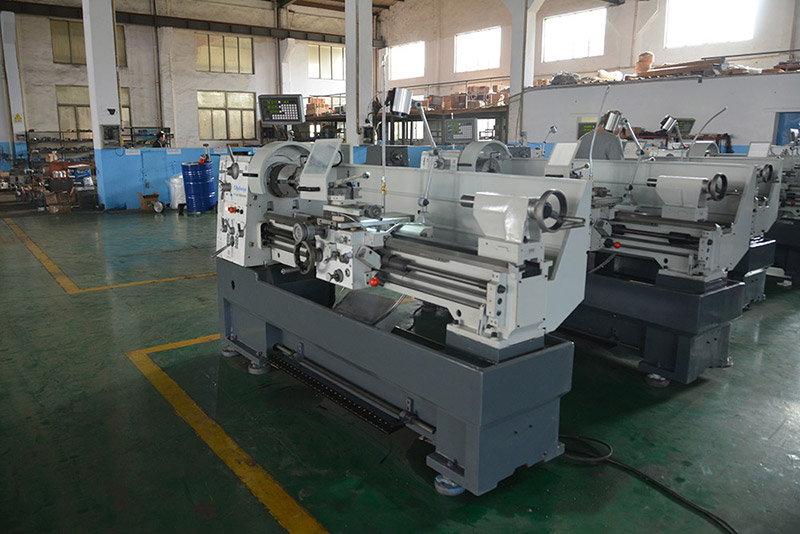

CQ6232L
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3800
QUICK OVERVIEW
Precision ground and hardened bedways The spindle is supported with precision roller bearings Head stock gears are made of high quality steel ground and hardened Three different length beds are available Easy operating speed change levers Removable g
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3800
QUICK OVERVIEW
Precision ground and hardened bedways The spindle is supported with precision roller bearings Head stock gears are made of high quality steel ground and hardened Three different length beds are available Easy operating speed change levers Removable g
Contact us
| CQ6232L/36L /Features: | |
|
|
|
| Specification | |
| Model | CQ6232L |
| Swing Over Carriage | 330mm |
| Swing Over Bed | 198mm |
| Distance Between Center | 476mm |
| Swing Over Gap | 750/1000mm |
| Motor Power | 187mm |
| Width Of Bed | 1.5KW 1PH/3PH |
| Diameter Of Spindle Bore | 220V/380V |
| Voltage | 38mm or 51mm |
| Spindle Speeds | D1-4A/A2-4ISO |
| Spindle Nose | 70-2000r/min |
| Travel Of Compound Rest | 160mm |
| Travel Of Cross Slide | 68mm |
| Diameter Of Feed Rod | 22mm |
| Diameter Of Lead Screw | 19mm |
| Range Of Metric Thread | 4-56T.P.I |
| Range Of Inch Thread | 0.4-7mm |
| Range Of Diametric threads | 0.2-3.5mm |
| Range Of module threads | 8-120DP |
| Range Of Cross Feeds | 0.097-2.713mm |
| Range Of Longitudinal Feeds | 0.033-0.933mm |
| Travel Of Tailstock Quill | 32mm,MT＃3 |
| Diameter & Taper Of Tailstock Quill | 75 or 100(mm) |
| Net Weight | 500kgs |
| Standard accessories | Operational |
| Three jaw chuck | Coolant system |
| Four jaw chuck | Brake |
| Steady rest | Driving plate |
| Follow rest | Living center |
| Face plate | Taper turning attachment |
| Dead center | Drill chuck |
| Thread chasing dial | Stopper |
| Chip tray | QCTP |

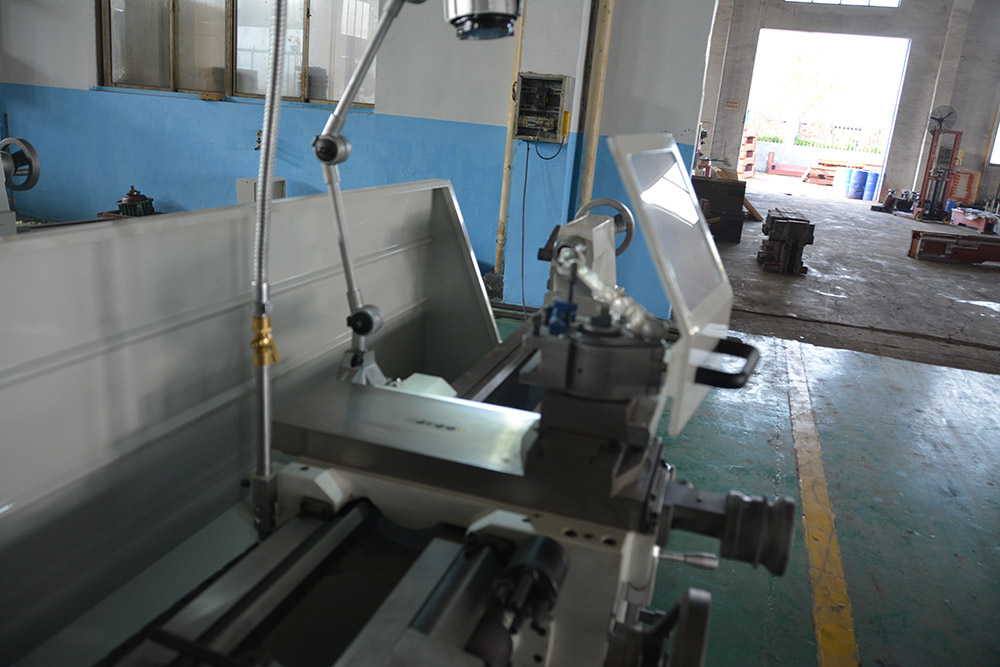

| Splash guard | DRO |
| Toolbox & tools 1set | Chuck cover |
| Leadscrew cover | |
