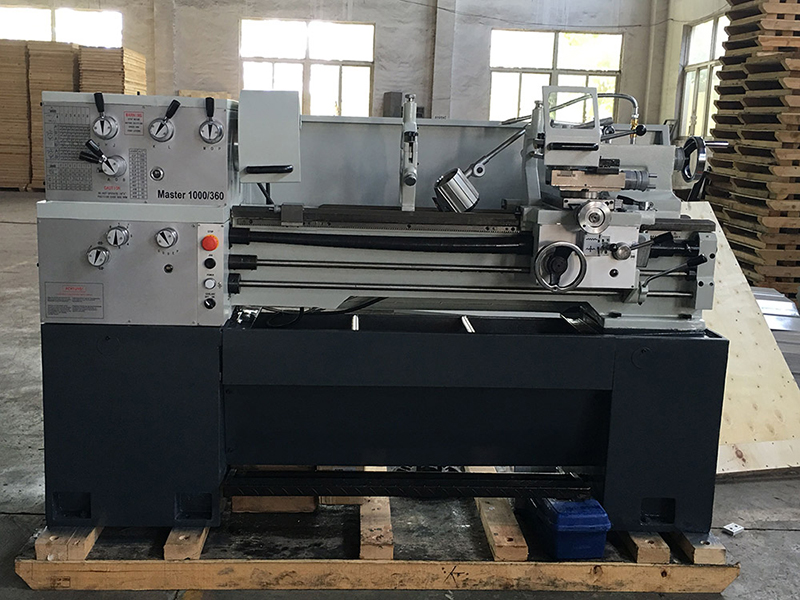

CQ6230D
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3450
QUICK OVERVIEW
Precision ground and hardened bedways The spindle is supported with precision roller bearings Head stock gears are made of high quality steel ground and hardened Two different length beds are available Easy operating gear box has various feeds and thr
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3450
QUICK OVERVIEW
Precision ground and hardened bedways The spindle is supported with precision roller bearings Head stock gears are made of high quality steel ground and hardened Two different length beds are available Easy operating gear box has various feeds and thr
Contact us
| CQ6230D/Feature | |
|
|
|
| Specification | |
| Items | METRIC INCH |
| Max. swing over bed | 300mm 12" ; |
| Max. Swing over cross slide | 178mm 7” |
| Max. Swing over gap | 430mm 17 ” |
| Max. Length of work piece | 750mm /914mm 30”/36” |
| Hole through Spindle | 38mm 1.5” |
| Taper of spindle bore | MTNO.5 |
| Range of spindle speeds | 65 - 1400rpm ( o r 6 5-1810rpm) |
| Taper of tailstock quill sleeve | MTNO.3 |
| Metric threads can be cut（26 kinds） | 0.4 - 7mm |
| Inch threads can be cut（34 kinds） | 4 - 56TPI |
| Max. travel of cross slide | 175mm6 - 7/8” |
| Max. travel of top slide | 95mm 3 ” |
| Max. moving of tailstock sleeve | 100 mm4 ” |
| Motor horse power | 1.5kw（1.1kw） |
| Net weight | 480/550kg |
| Packing size（L×W×H） | 1730×750×1510mm/1960×750×1510mm |
| Longitudinal feed per revolution of spindle（32 kinds） | 0.052-1.392mm/r 0.002”-0.0548”/r |
| Cross feed per revolution of spindle（32 kinds） | 0.014-0.38 mm/r 0.0007”-0.0187”/r |
| Standard accessorie | Operation accessorie |
| Three jaw chuck | Coolant system |
| Four jaw chuck | Brake |
| Steady rest | Driving plate |
| Follow rest | Living center |
| Face plate | Taper turning attachment |
| Dead center | Drill chuck |
| Thread chasing dial | Stopper |
| Chip tray | QCTP |
| Splash guard | DRO |
| Toolbox & tools 1set | Chuck cover |
| Leadscrew cover | |
