CQ6236G
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3800-4500
QUICK OVERVIEW
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3800-4500
QUICK OVERVIEW
Contact us

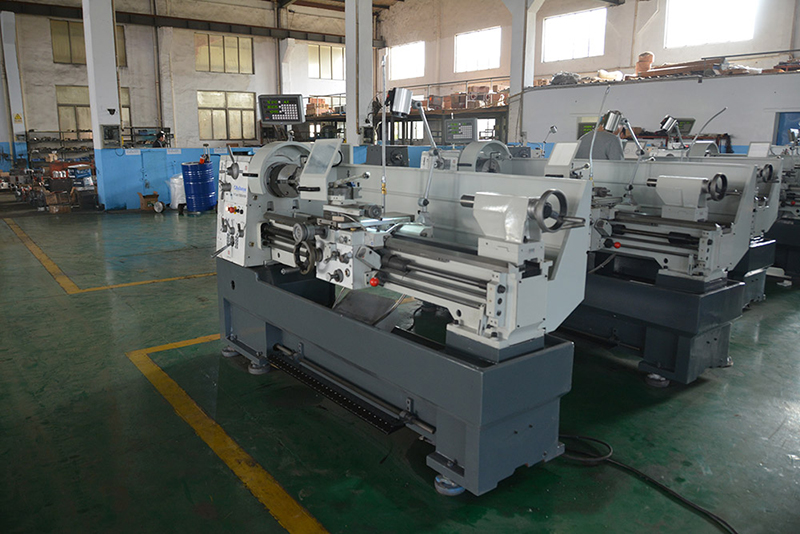

| CQ6232G/36GFeatures | |
| Precision ground and hardened bedways | |
| The spindle is supported with precision roller bearings | |
| Head stock gears are made of high quality steel ground and hardened | |
| Three different length beds are available | |
| Spindle speed range 70-2000r/min | |
| D1-4 cam lock spindle nose | |
| Ф51mm Spindle bore for optional | |
| Two speed motor for optional | |
| Specification | |
| Items | Specification |
| Models | CQ632G CQ6236G |
| Swing over bed | 330mm(13") 360mm(14") |
| Swing over cross slide | 198mm(7-25/32") 212mm(8-1/6") |
| Swing in gap diameter | 476mm(18-3/4") 491mm(9-1/3") |
| Swing in length of gap | 210mm(8-1/4") |
| Center height | 166mm(6-1/2") 179mm |
| Admits between | 550mm(22")750mm(30") 1000mm(40") |
| Bed width | 187mm(7-3/8") |
| Bed length | 1248mm(49-1/8") 1655mm(65-1/8") 1363mm(53-2/3") |
| Spindle bore | 38mm(1-1/2")&51mm(2") |
| Spindle nose | D1-4" or A2-4" |
| Taper in sleeve | NO.3 Morse |
| Speeds number | 8 or 16(pole changeable motor) (optional) |
| Speeds range | 70-2000r.p.m.or 35-2000r.p.m.(2 speed motor) |
| Cross slide travel | 160mm(6-5/16") 118mm(4-5/16") |
| Compound rest travel | 68mm(2-11/16") |
| Lead screw thread | 8T.P.I. or 3mm pitch |
| Feed rod diameter | 19mm(3/4") |
| Cutting tool max section | 16mm×16mm(5/8"×5/8") |
| Threads imperial pitches | 36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) |
| Threads metric pitches | 28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch) |
| Longitudinal feeds imperial | 36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev) |
| Longitudinal feeds metric | 36 Nos.0.050-0.696"/Rev. or (32 Nos.0.052-0.392mm/Rev) |
| Cross feeds imperial | 36 Nos.0.0006-0.0094"/Rev. or (32 Nos.0.007-0.0187"/Rev) |
| Cross feeds metric | 36 Nos.0.013-0.188"/Rev. or (32 Nos.0.014-0.380mm/Rev) |
| Quill diameter | 32mm(1-1/4") |
| Quill travel | 100mm(3-15/16") |
| Quill taper | NO.3 morse |
| For main motor | 1.5KW 3PH or 1PH |
| Standard accessories | Operation accessories |
| Three jaw chuck | Coolant system |
| Four jaw chuck | Brake |
| Steady rest | Driving plate |
| Follow rest | Living center |
| Face plate | Taper turning attachment |
| Dead center | Drill chuck |
| Thread chasing dial | Stopper |
| Chip tray | QCTP |

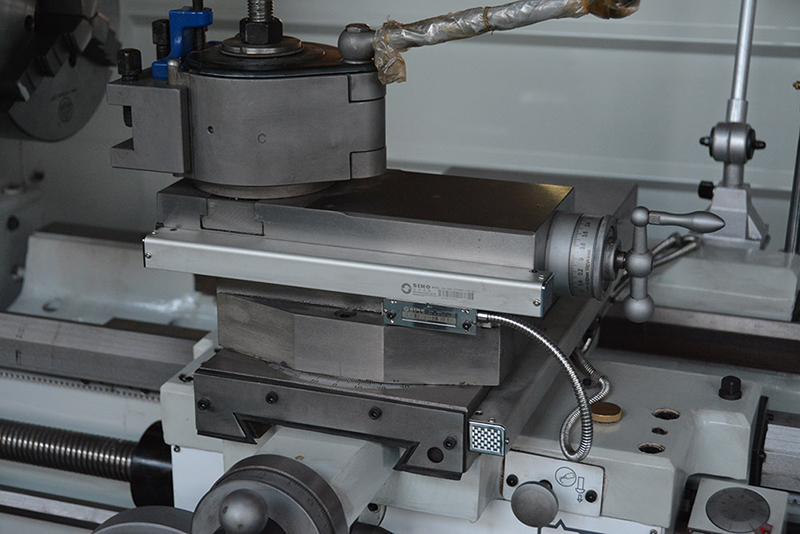

| Splash guard | DRO |
| Toolbox & tools 1set | Chuck cover |
| Leadscrew cover | |
| Tool | |
