JY250
Order No.:
Stock: 30
Delivery Time: 30
Without Tax: $
Machine video: 1880
QUICK OVERVIEW

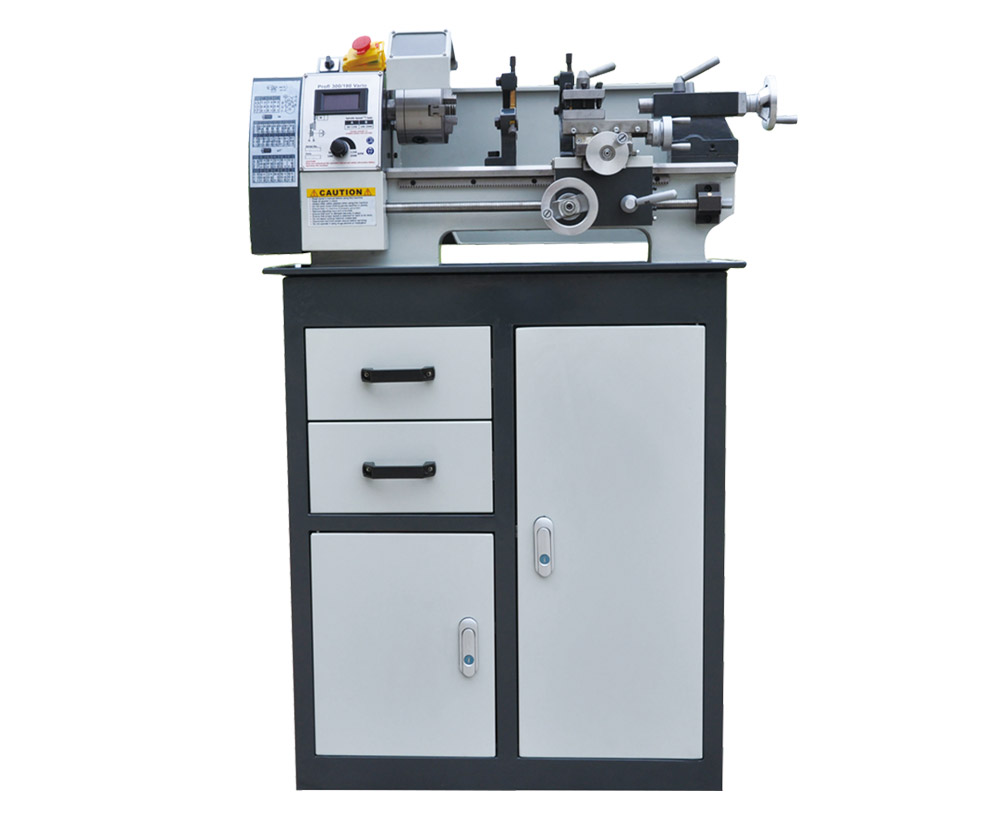

JY250 Benchtop Metal Lathe sports generous capacity, a lot of thread ranges, a wider bed, and a larger chuck, With features like a 26mm spindle bore, 8-56 TPI leadscrew and an MT#2 tailstock, you'll be able to turn some surprisingly hefty projects!
Contact us
Order No.:
Stock: 30
Delivery Time: 30
Without Tax: $
Machine video: 1880
QUICK OVERVIEW
JY250 Benchtop Metal Lathe sports generous capacity, a lot of thread ranges, a wider bed, and a larger chuck, With features like a 26mm spindle bore, 8-56 TPI leadscrew and an MT#2 tailstock, you'll be able to turn some surprisingly hefty projects!
Contact us
| Model | JY180 | JY220 | JY250 | JY280 | JY280-F |
| JY220V | JY250V | JY280V | JY280V-F | ||
| Distance between centers | 300mm | 360mm | 550mm/750mm | 550mm/750mm | 700mm |
| Swing over bed | 180mm | 210mm | 250mm | 280mm | 280mm |
| Swing over cross slide | 95mm | 110mm | 145mm | 145mm | 165mm |
| Width of bed | 100mm | 130mm | 135mm | 135mm | 135mm |
| Taper of spindle bore | MT3 | MT3 | MT4 | MT4 | MT4 |
| Spindle bore | 21mm | 26mm | 26mm | 26mm | 260mm |
| Number of spindle speeds | 6/variable speed | 6/variable speed | 6/variable speed | ||
| Range of spindle speeds | 50-2500rpm | 125-2000/100-2500rpm | 125-2000/50-2000rpm | 125-2000/50-2000rpm | 125-2000/50-2000rpm |
| Range of longitudinal feeds | 0.07 -0.20mm /r | 0.078-0.16mm /r | 0.07 -0.20mm /r | 0.07 -0.20mm /r | 0.02 -0.28mm /r |
| Range of inch threads | 10-44T.P.I | 8-56T.P.I | 8-56T.P.I | 8-56T.P.I | 8-56T.P.I |
| Range of metric threads | 0.5-3mm | 0.04-0.125-5 | 0.4 -3.5mm | 0.4 -3.5mm | 0.2 -3.5mm |
| Top slide travel | 55mm | 50mm | 50mm | 50mm | 50mm |
| Cross slide travel | 75mm | 45mm | 115mm | 115mm | 140mm |
| Tailstock quill travel | 60mm | 55mm | 70mm | 70mm | 80mm |
| Taper of tailstock quill | MT2 | MT2 | MT2 | MT2 | MT2 |
| Motor | 450W | 500W | 550/750W | 550/750W | 750/1100W |
| Packing size | 800 × 480 × 460mm | 1055/580 × 560 × 440mm | 1150/1350 × 560 × 570mm | 1150/1350 × 560 × 570mm | 1400/700× 680 mm |
| Net weight | 65kg | 115kg / 130kg | 120kg / 140kg | 140kg / 160kg | 210kg / 230kg |
| Standard Accessores | Optional accessories | |
| 3-jaw chuck(125mm) | 4-jaw chuck (125mm) | |
| Splash guard | Backplate | Turning tools |
| Chip tray | Follow rest | Quick change tool post |
| Toolbox tools | Steady rest | Threading dial |
| Face plate (240mm) | Stand | |
| ER25 collet chuck | ||
| Collet holder | ||
