QUICK OVERVIEW

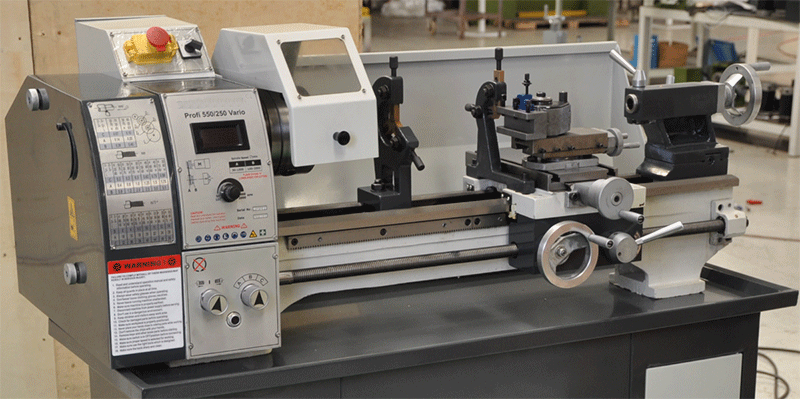

The JY 250V turning lathe feature a high speed range up to 3000 rpm as well as a large range of standard accessories (for instance DC-motor with frequency invertor, main spindle bearing in P5 quality) .
Contact us
SPECIFICATIONS
|
Distance between centers |
550 mm |
|
Center height |
125 mm |
|
Swing over bed |
250 mm |
|
Bed width |
135 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range, stepless |
30 - 450 / 150 - 3000 rpm |
|
Longitudinal feed |
(6) 0,06 - 0,32 mm/rev. |
|
Cross feed |
(4) 0,03 - 0,075 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
70 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
1,5 kW / 230 V |
|
Motor power input S6 40% |
2,2 kW / 230 V |
|
Machine dimension (W x D x H)* |
1210 x 610 x 450 mm |
|
Weight approx. |
137 kg |
Standard accessories:
- 3-jaw steel chuck
- Flange 125 mm
- Dead centers
- Change gears
- 4-way tool post holder
- Cross slide with top support
- Frequency invertor
- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Lead screw cover
- Tools
Optional accessories:
- 4-jaw steel chuck
- Soft solid jaws
- Independent chuck K72-125 mm
- Face plate 240 mm
- Flange 125 mm
- Steady rest
- Follow rest
- Economy live center
- Live center with 7 interchangeable tips
- Milling attachment
- Coolant pump with plastic tank
- Quick change set
- Costs of assembly for quick change set
- Indexable carbide turning tool set, 12 mm, 5 pcs
