QUICK OVERVIEW

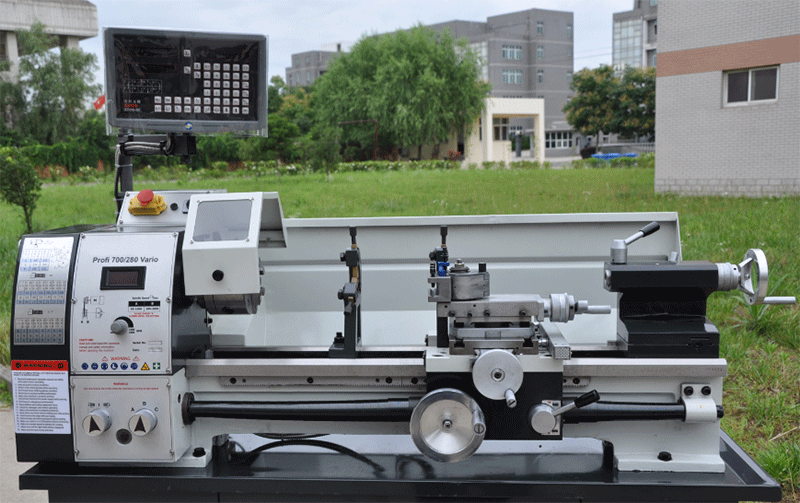

The JY 280V is manufactured according to highest quality standards and precision. The ergonomically located digital display offers easy reading of the electronic speed adjustment.
Contact us
SPECIFICATION
|
Distance between centers |
700 mm |
|
Center height |
140 mm |
|
Swing over bed |
280 mm |
|
Spindle bore |
38 mm |
|
Taper at spindle bore |
MT 5 |
|
Speed range, stepless |
50 - 850 / 110 - 1800 rpm |
|
Longitudinal feed |
(14) 0,07 - 0,65 mm/rev. |
|
Cross feed |
(11) 0,03 - 0,12 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1" |
|
Travel of tailstock sleeve |
85 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power output S1 100% |
1,1 kW / 230 V |
|
Motor power input S6 40% |
1,5 kW / 230 V |
|
Machine dimensions (W x D x H)* |
1380 x 640 x 500 mm |
|
Weight approx. |
235 kg |
Standard accessories:
- 3-jaw chuck DK11-160 mm
- Flange 160 mm
- Dead center
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Spindle cover
- Tools
Optional accessories:
- 4-jaw steel chuck
- Soft solid jaws
- Independent chuck K72-125 mm
- Face plate 240 mm
- Flange 125 mm
- Steady rest
- Follow rest
- Economy live center
- Live center with 7 interchangeable tips
- Milling attachment
- Coolant pump with plastic tank
- Quick change set
- Costs of assembly for quick change set
- Indexable carbide turning tool set, 12 mm, 5 pcs
