QUICK OVERVIEW

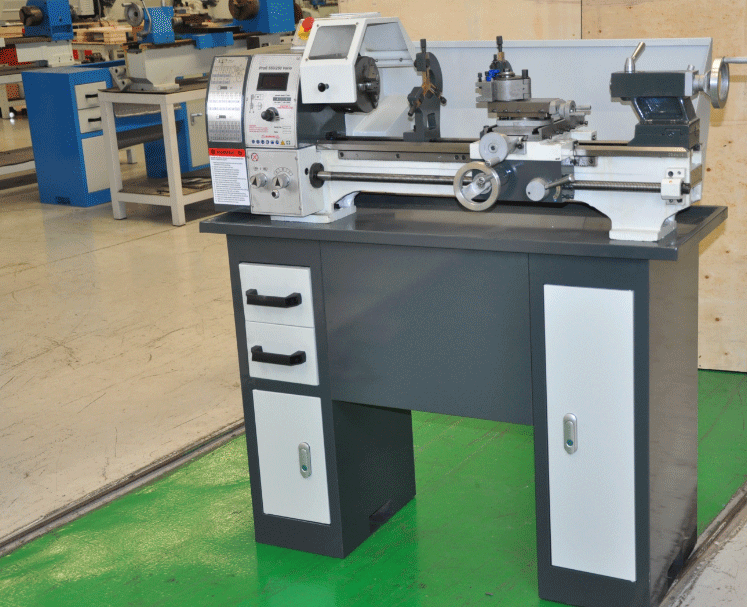

The JY 250VFL lathe is serially equipped with a lead screw and feed rod for thread cutting/ auto-feed. New features at this model are the safety clutch and the micrometer longitudinal fence. Further, this machine can be additionally with a mill.
Contact us
SPECIFICATIONS
|
Distance between centers |
750 mm |
|
Center height |
130 mm |
|
Swing over bed |
250 mm |
|
Bed width |
135 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range, stepless |
50 - 1000 / 100 - 2000 rpm |
|
Longitudinal feed |
(6) 0,08 - 0,48 mm/rev. |
|
Cross feed |
(6) 0,026 - 0,156 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 Gg/1" |
|
Travel of tailstock sleeve |
75 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
T-slot size |
10 mm |
|
Motor power output S1 100% |
0,75 kW / 230 V |
|
Motor power input S6 40% |
1,0 kW / 230 V |
|
Machine dimensions (W x D x H)* |
1350 x 600 x 460 mm |
|
Weight approx. |
145 kg |
FEATURES
- Practical, solid machine with leadscrew and feed rod
- Logically arranged feed setting allows easy, smooth adjustment
- Wide range of applications: precision mechanics, training and education, etc.
- Ideal for processing steel, non-ferrous metals and plastics
- Apron features handwheels with fine scale
- Headstock serves as temporary tool storage
- Adjustable headstock, tailstock and guides
- Powerful motor, even at longer operation
- Electronic, stepless speed setting allows ideal adjustment to each workpiece
Standard accessories:
- 3-jaw chuck DK11-125 mm
- Flange 125 mm
- Dead centers
- Change gears

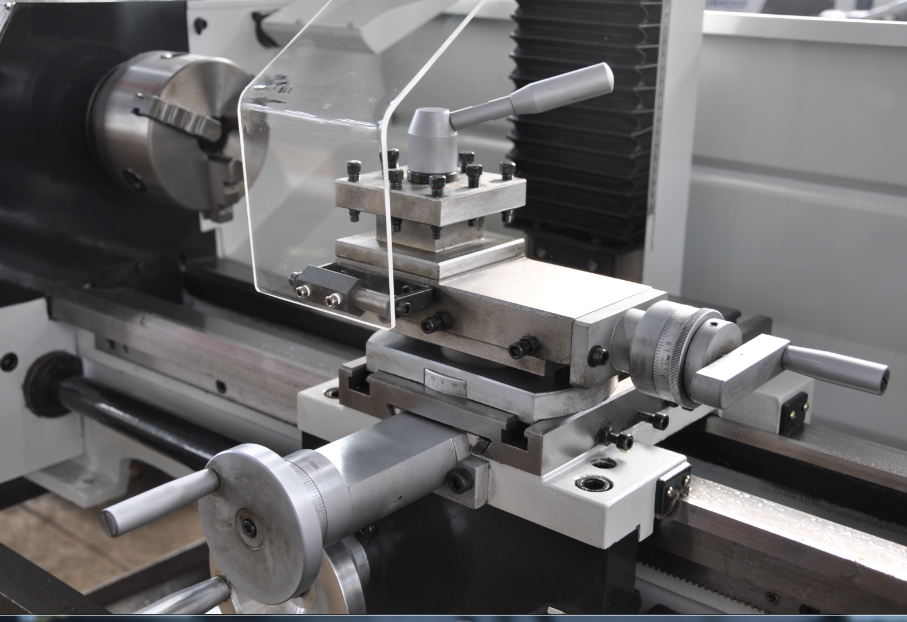

- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Digital speed display
- Thread dial
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
Optional accessories:
- 4-jaw steel chuck
- Soft solid jaws
- Independent chuck K72-125 mm
- Face plate 240 mm
- Flange 125 mm

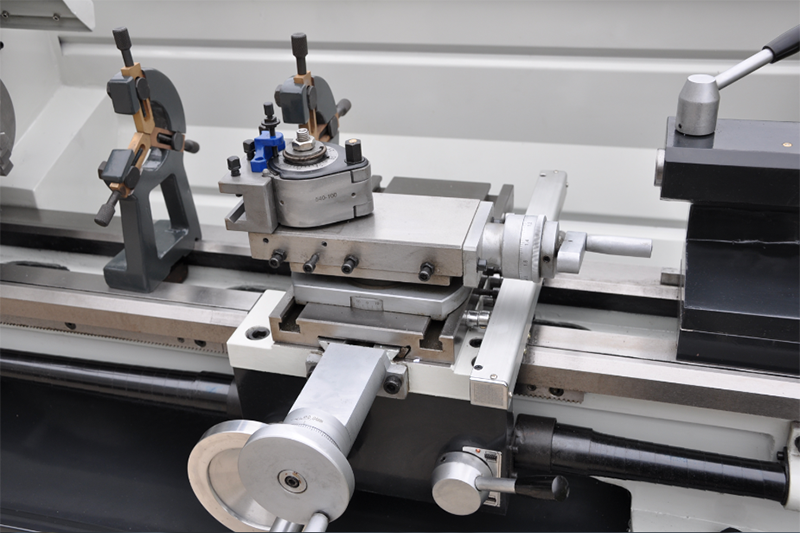

- Steady rest
- Follow rest
- Economy live center
- Live center with 7 interchangeable tips
- Milling attachment
- Coolant pump with plastic tank
- Quick change set
- Costs of assembly for quick change set
- Indexable carbide turning tool set, 12 mm, 5 pcs
