JY20/20L/20-1/25-1
Order No.:
Stock: 10
Delivery Time: 1-30
Without Tax: $950-1100
Machine video: 1000-1200
QUICK OVERVIEW

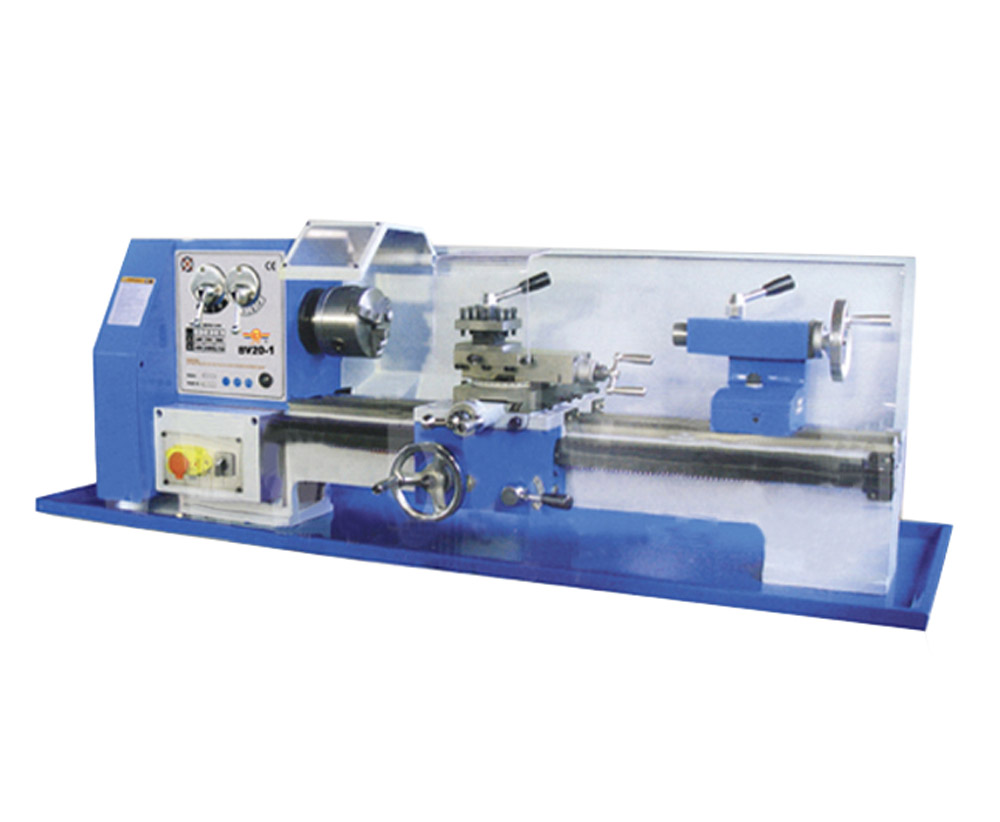

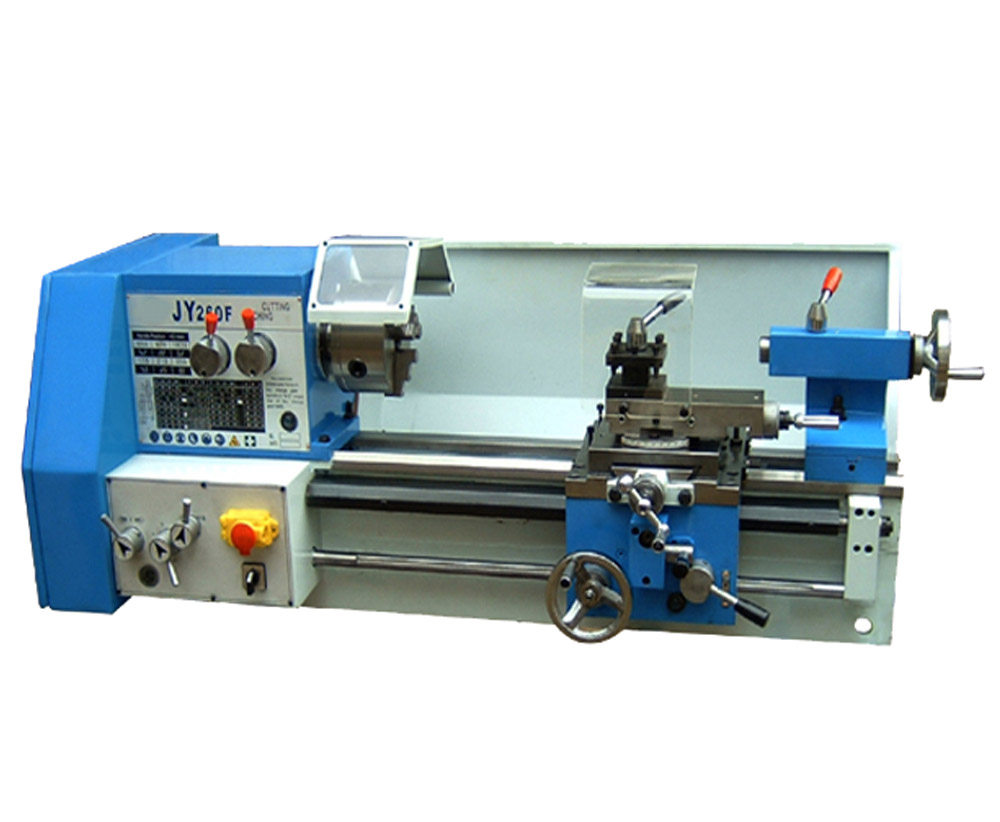

JY20 Benchtop Metal Lathe sports generous capacity, a lot of thread ranges, a wider bed, and a larger chuck, With features like a 20mm spindle bore, and an MT#2 tailstock, you'll be able to turn some surprisingly hefty projects!
Contact us
Order No.:
Stock: 10
Delivery Time: 1-30
Without Tax: $950-1100
Machine video: 1000-1200
QUICK OVERVIEW
JY20 Benchtop Metal Lathe sports generous capacity, a lot of thread ranges, a wider bed, and a larger chuck, With features like a 20mm spindle bore, and an MT#2 tailstock, you'll be able to turn some surprisingly hefty projects!
Contact us
| Model | JY20 | JY20-1 | JY25-1 |
| JY20L | JY20L-1 | JY25L-1 | |
| Distance between centers | 350/520mm | 350/520mm | 450/700mm |
| Swing over bed | 110mm | 200mm | 250mm |
| Swing over cross slide | 200mm | 115mm | 115mm |
| Width of bed | 115mm | 130mm | 130mm |
| Taper of spindle bore | MT3 | MT3 | MT3 |
| Spindle bore | 20mm | 20mm | 20mm |
| Number of spindle speeds | |||
| Range of spindle speeds | 120-2000rpm | 140-1710rpm | 115-1620rpm |
| Range of longitudinal feeds | 0.074-0.3mm /r | 0.05-0.15mm /r | 0.05-0.15mm /r |
| Range of inch threads | I | 8-32T.P.I | 8-56T.P.I |
| Range of metric threads | 0.04-0.125mm | 0.4-3mm | 0.2-35mm |
| Top slide travel | 50mm | 50mm | |
| Cross slide travel | 45mm | 45mm | |
| Tailstock quill travel | 35mm | 35mm | |
| Taper of tailstock quill | MT2 | MT2 | MT3 |
| Motor | 370W | 550W | 750W |
| Packing size | 1080X610 X380 mm | 1050/1200 X500X550mm | 1260X1510X570X580mm |
| Net weight | 110kg / 125kg | 105kg / 110kg | 151kg / 171kg |
| Standard Accessores | Optional accessories | ||
| 3-jaw chuck(125mm) | 4-jaw chuck (125mm) | ||
| Splash guard | Backplate | Turning tools | |
| Chip tray | Follow rest | Quick change tool post | |
| Toolbox tools | Steady rest | Threading dial | |
| Face plate (240mm) | Stand | ||
| ER25 collet chuck | |||
| Collet holder | |||
