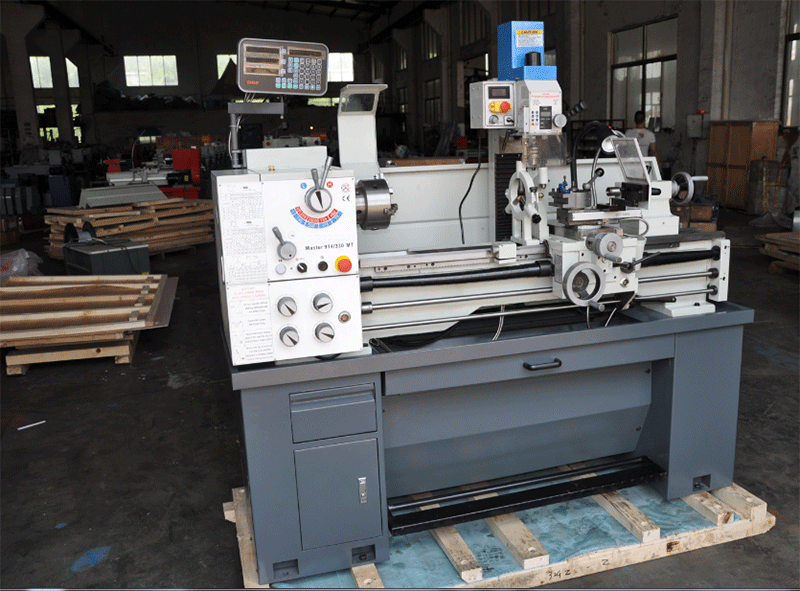

CQ6232D
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3500
QUICK OVERVIEW
CQ6232D/36D/Features No change gear in tool box The thread category complete, not only cutting metric thread and imperial thread,but also cutting diametric thread and module thread Head stock gears are made of high quality steel ground and hardened
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 3500
QUICK OVERVIEW
CQ6232D/36D/Features No change gear in tool box The thread category complete, not only cutting metric thread and imperial thread,but also cutting diametric thread and module thread Head stock gears are made of high quality steel ground and hardened
Contact us
| Specification | |
| Specifications | CQ6232Vx1000 CQ6236Vx1000 |
| Distance between centers | 750/1000mm |
| Swing over bed | 330mm 360mm |
| Swing over gap | 476mm 502mm |
| Swing over cross slide | 198mm 224mm |
| Bed width | 186mm |
| Taper of spindle bore | MT5 |
| Spindle bore 3 8mm or 40mm Spindle nose | D1-4 or D1 -5 |
| Step of spindle speed | 8 |
| Range of spindle speed | 70-2000r/min |
| Range of cross feeds | 0.01-0.703mm/rev/32 |
| Range of longitudinal feeds | 0.046-3.249mm/rev/24 |
| Range of horizontal feeds | 4-112T .P.I/42 |
| Range of metric threads | 0.1-7mm/44 |
| Range of moduler threads | 0.1-1.75M.P/34 |
| Range of diametrical threads | 16-112D.P/25 |
| Top slide travel | 95mm |
| Cross slide travel | 170mm |
| Tailstock quill travel | 100mm |
| Taper of tailstock quill | Mt3 |
| Main motor | 1.5KW |
| Packing size | 168x76x 158cm(750mm) 193x76x153cm(1000mm) |
| Net Weight | 510kg( 750m m ) 540kg(1000mm) |
| Standard accessories | Operational accessories |
| Three jaw chuck | Coolant system |
| Four jaw chuck | Brake |

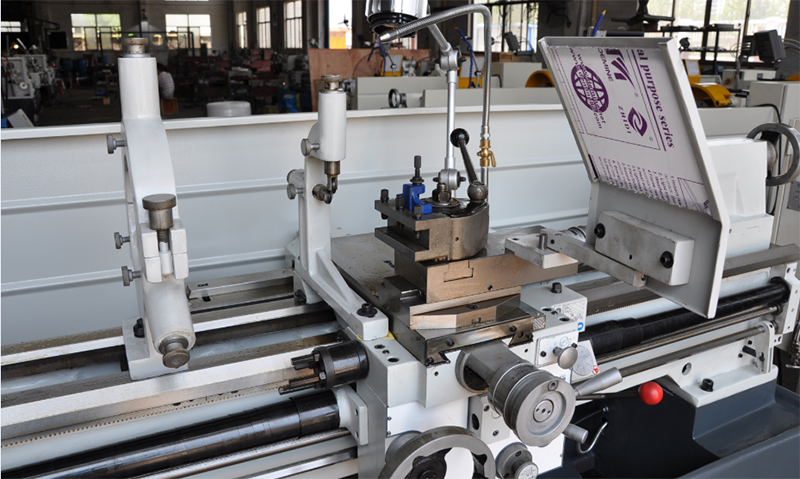

| Steady rest | Driving plate |
| Follow rest | Living center |
| Face plate | Taper turning attachment |
| Dead center | Drill chuck |
| Thread chasing dial | Stopper |
| Chip tray | QCTP |
| Splash guard | DRO |
| Toolbox & tools 1set | Chuck cover |
| Leadscrew cover | |
