QUICK OVERVIEW

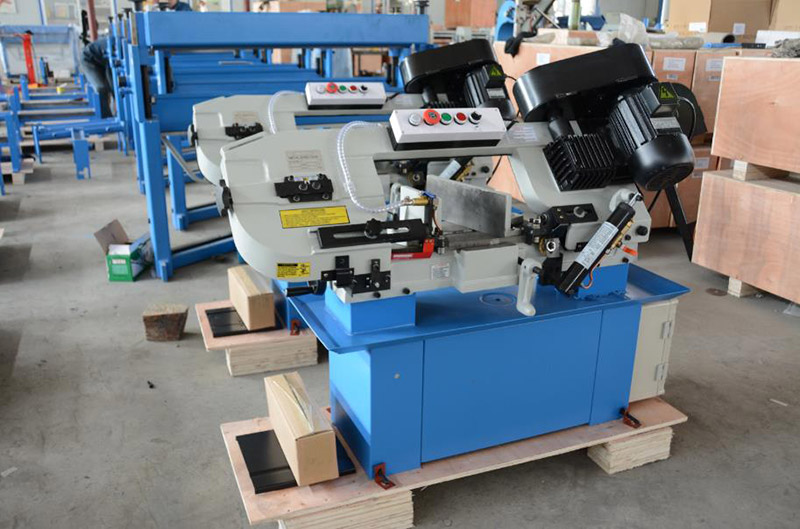

The EBS 181 high-quality metal bandsaw features solid construction assuring high accuracy. The model is particulary popular price-point conscious consumers.
Contact us
TECHNICAL SPECIFICATIONS
|
Cutting capacity round 90° |
180 mm |
|
Cutting capacity flat 90° |
180 x 210 mm |
|
Cutting capacity round 45° |
90 mm |
|
Cutting capacity flat 45° |
140 x 80 mm |
|
Working height |
550 mm |
|
Bandsaw blade dimensions |
2360 x 20 x 0,9 mm |
|
Cutting speeds |
21 / 34 / 46 / 56 m/min |
|
Coolant tank |
9 liter |
|
Coolant pump S1 100% |
25 W |
|
Motor power output S1 100% |
0,75 kW |
|
Motor power input S6 40% |
1,1 kW |
|
Voltage |
400V |
|
Machine dimensions (L x D x H) |
1250 x 520 x 1000 mm |
|
Weight approx. |
130 kg |
FEATURES
- Ideal for cutting of profiles, pipes, solid material etc.
- Quick clamping vice adjustable for mitre cutting up to 45°
- Bandsaw blade guides feature double ball bearings to ensure optimal run
- Cutting pressure adjustable via valve
- Automatic shut-down when cutting is finished
- Includes coolant device, which is stored inside the machine frame, requiring minimum space
- Smooth and vibration-free running for best results
- Torsion-free, solid cast iron saw frame
- Includes material fence for effective work
Standard accessories:
- Bandsaw blade
- Coolant device
- Material fence
- Quick clamping vice
- Moveable machine base
- Motor protecting switch
- Hydraulic cylinder
- Separate emergency stop button according CE
Optional accessories:
- Bandsaw blade HSS 2360 x 20 x 0,9 - 14 TpI (Art.Nr.:47-1015)
- Bandsaw blade HSS 2360 x 20 x 0,9 - 8 TpI (Art.Nr.:47-1016)
- Bandsaw blade BiFlex 2360 x 20 x 0,9 - 14 TpI (Art.Nr.:47-1017)
- Bandsaw blade BiFlex 2360 x 20 x 0,9 - 8 TpI (Art.Nr.:47-1018)
- Bandsaw blade BiFlex 2360 x 20 x 0,9 - Vario 8/12 TpI (Art.Nr.:47-1019)
- Bandsaw blade BiFlex 2360 x 20 x 0,9 mm - Vario 6/10 TPI (Art.Nr.:47-1020)
- Universal coolant fluid RK 12, 5 l canister (Art.Nr.:54-1206)
