QUICK OVERVIEW

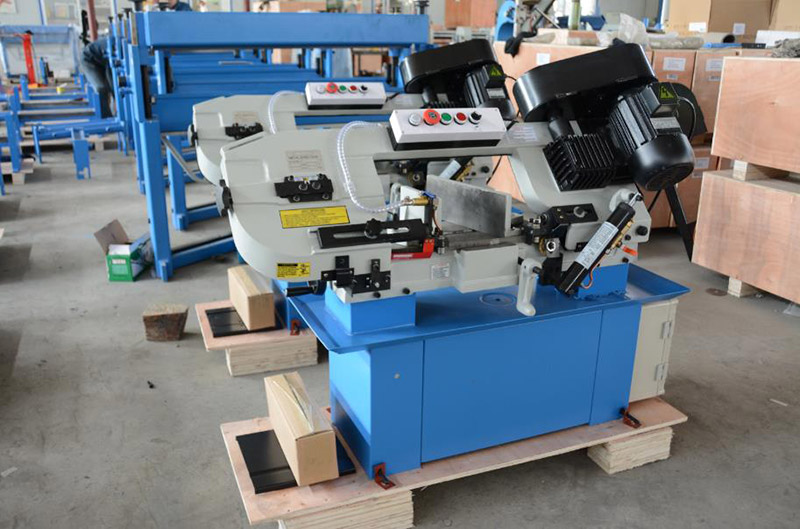

The EBS 115 vertical and horizontal bandsaw is one of our most established models for vertical and horizontal cutting. Unbeatable in terms of price-to-performance ratio, this machine features high versatility, making it ideal for both craftsmen and amateu
Contact us
TECHNICAL SPECIFICATIONS
|
Cutting capacity round 90° |
100 mm |
|
Cutting capacity flat 90° |
100 x 150 mm |
|
Cutting capacity round 45° |
76 mm |
|
Cutting capacity flat 45° |
76 x 115 mm |
|
Working height |
610 mm |
|
Bandsaw blade dimensions |
1638 x 13 x 0,65 mm |
|
Cutting speeds |
20 / 29 / 50 m/min |
|
Motor power output S1 100% |
0,37 kW |
|
Motor power input S6 40% |
0,55 kW |
|
Voltage |
230 V |
|
Machine dimensions (L x D x H) |
895 x 400 x 950 mm |
|
Weight approx. |
62 kg |
FEATURES
- Vice adjustable for mitre cutting (90° to 45°)
- Cutting pressure adjustable to each workpiece
- V-belt allows 3 speed settings
- Vertical useable for cutting of sheet metal
- Cast iron saw frame guarantees vibration-free running
- Includes material fence for efficient work
- Carriage and transport handle for high mobility
- Automatic shut-down at cutting end
- Attractive price-performance ratio, ideal for amateurs
Standard accessories:
- Bandsaw blade
- Quick clamping vice
- Material fence
- Support table
- Automatic shut-down
- Mobile machine base
- Separat emergency stop button according to CE
Optional accessories:
- Bandsaw blade HSS 1638 x 13 x 0,65 - 14 TpI (Art.Nr.:47-1010)
- Bandsaw blade HSS 1638 x 13 x 0,65 - 8 TpI (Art.Nr.:47-1011)
- Bandsaw blade BiFlex 1638 x 13 x 0,65 - 14 TpI (Art.Nr.:47-1012P)
- Bandsaw blade BiFlex 1638 x 13 x 0,6 - Vario 6/10 TpI (Art.Nr.:47-1014)
