QUICK OVERVIEW

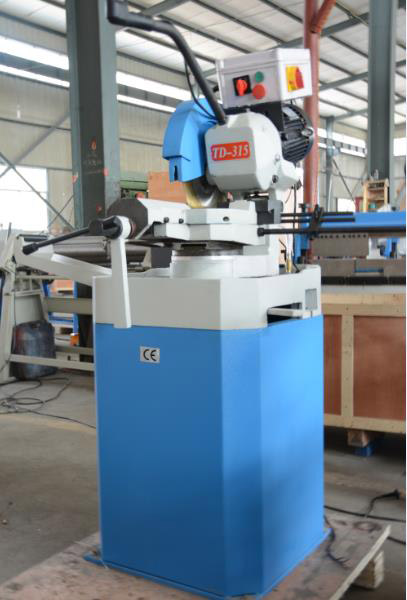

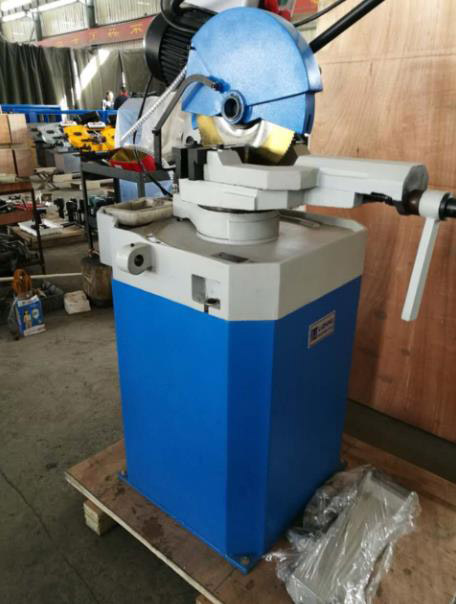

The CS 315 H manual metal circular saws feature 2 speed settings, making them ideal models for sawing of profiles, pipes and solid iron, stainless steel and non-ferrous metal. The solid construction, precise cutting results and high user friendliness make
Contact us
TECHNICAL SPECIFICATIONS
|
Sawblade dimensions |
315 x 40 mm |
|
Speeds |
19 / 38 rpm |
|
Max. opening |
150 mm |
|
Working height |
920 mm |
|
Motor power output S1 100% |
0,75 / 1,5 kW |
|
Motor power input S6 40% |
1,0 / 2,1 kW |
|
Voltage |
400 V |
|
Machine dimensions (L x D x H) |
530 x 1000 x 1740 mm |
|
Weight approx. |
235 kg |
|
|
Full rivet |
Pipe |
Pipe |
Full rivet |
Pipe |
Full rivet material |
|
90° |
80 mm |
80 mm |
80 x8 0 mm |
80 x 80 mm |
90 x 80 mm |
90 x 80 mm |
|
45° |
70 mm |
70 mm |
70 x 70 mm |
70 x 70 mm |
80 x 70 mm |
80 x 70 mm |
FEATURES
- Gear head swivels 90º to both sides for slotting
- Removeable coolant tank integrated in solid machine base
- Gear unit features hardened, polished worm shaft and bronze worm wheel
- Protective cover opens automatically when cutting
- Precise, self-centering double-clamping vice positioned on four guidings
- Ergonomically shaped handle with push button for high work comfort
- Low saw blade speed (19/38 r/min) is ideal for cutting solid materials
- Reduction gear unit, quietly running in oil bath
Standard accessories:
- Coolant device with filter
- Self-centering vice
- Stand
Optional accessories:
- Sawblade HSS TiN-coated 315 x 2,5 x 40 mm, T160 (Art.Nr.:48-1026)
- Magnetic chip collector (Art.Nr.:51-1050)
- Universal coolant fluid RK 12, 5 l canister (Art.Nr.:54-1206)
- Roller table RB 2 (Art.Nr.:07-1455)
- Roller table RB 3 (Art.Nr.:07-1460)
- Roller table RB 4 - 1000 (Art.Nr.:07-1461)
- Roller table RB 7 - 2000 (Art.Nr.:07-1462)
- Roller table RB 10 - 3000 (Art.Nr.:07-1463XL)
- Measurement system LS 1 for RB 4 - 1000 (Art.Nr.:07-1466)
- Measurement system LS 2 for RB 7 - 2000 (Art.Nr.:07-1467)
- Measurement system LS 3 for RB 10 - 3000 (Art.Nr.:07-1468XL)
- PVC - rolls set for RB 4 / 7 / 10 / 13 (3 pcs.) * (Art.Nr.:07-1465)
- Roller table RB 1000 A with fence (Art.Nr.:07-1505)
- Roller table RB 2000 A with fence (Art.Nr.:07-1510)
- Roller table RB 3000 A with fence (Art.Nr.:07-1515XL)
