QUICK OVERVIEW

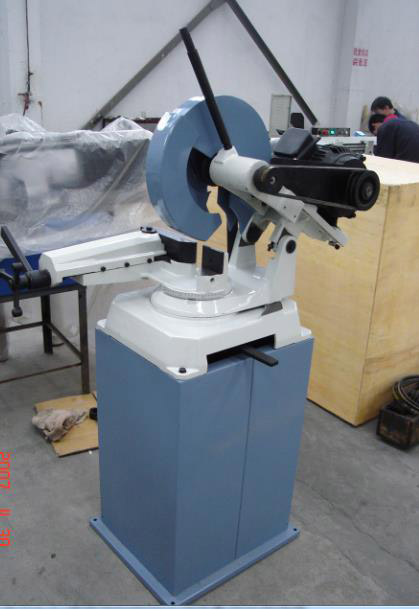

The cold circular saw CS 315 L comes with a wide range of standard equipment. Unbeatable in terms of price-to-performance ratio, this machine is ideal for metal workshops. The special vice guarantees precise, burr-free cutting.
Contact us
TECHNICAL SPECIFICATIONS
|
Sawblade dimensions |
315 x 32 mm |
|
Speeds |
18 / 36 rpm |
|
Max. opening |
140 mm |
|
Working height |
960 mm |
|
Motor power output S1 100% |
0,75 / 1,3 kW |
|
Motor power input S6 40% |
1,1 / 1,8 kW |
|

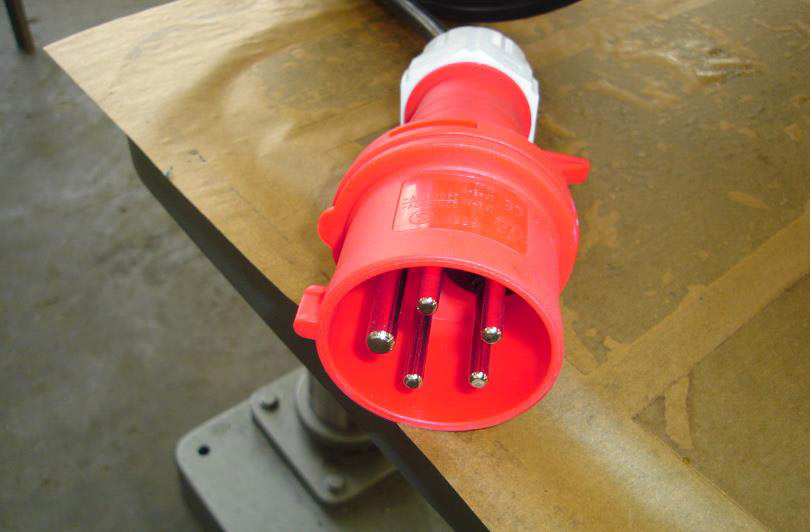

Voltage |
400 V |
|
Maschine dimensions (L x D x H) |
550 x 1000 x 1860 mm |
|
Weight approx. |
210 kg |
|
Full rivet material round |
Pipe round |
Pipe square |
Full rivet material square |
Pipe rectangular |
|
|
90° |
55 mm |
100 mm |
95 x 95 mm |
50 x 50 mm |
140 x 85 mm |
|
60° |
45 mm |
100 mm |
90 x 90 mm |
40 x 40 mm |
110 x 90 mm |
|
45° |
45 mm |
100 mm |
90 x 90 mm |
40 x 40 mm |
100 x 90 mm |
FEATURES
- Double vice with material fence, for mitre cutting up to 45°
- Ideal for cutting of steel, light metals and plastics
- Sawblade cover according to CE, closes automatically when lifting the saw arm
- Ergonomic control handle with 24 V safety switch
- Precise cutting results due to the special vice which clamps workpiece on the right and left side of the sawblade
- Serially equipped with TiN-coated sawblade
- Low speed range of the sawblade is ideal for cutting of stainless steel
- Hardened and ground gears in oil bath
- Coolant device is positioned inside the machine frame, requiring minimum space
- Coolant device with filter
- Self-centering vice
- TiN-coated sawblade
- Material fence
- Stand
Optional accessories:
- Sawblade HSS TiN coated 315 x 2,5 x 32, T160 (Art.Nr.:48-1040)
- Magnetic chip collector (Art.Nr.:51-1050)
- Bernardo Cutting fluid CUT, 1:30 dilutable, 5 l canister (Art.Nr.:54-1201)
